TONE – AIAS4160 AIR IMPACT WRENCH (Angle/Short Type)
Ideal for working in a narrow head area or unlimited space.
The direction of the switch can be changed to 360 °(fixed at 45 °).
The direction of the exhaust can be changed 360 °. Arrange the hammer sideways and pursue efficiency.
High power in a compact body.
Stepless output adjustment is also possible by the degree of pull of the switch.
Ideal for bolt installation and removal and claw replacement for tractor cultivators
Feature
TONE – AIAS4160 AIR IMPACT WRENCH (Angle/Short Type) :
Right rotation maximum torque (N m) | 400 |
Counterclockwise rotation maximum torque (N m) | 400 |
output angle | Output angle 12.7mm(1/2inch) |
Tip shape | Insertion angle (pin & O-ring) |
Features | double rotation |
No load speed (min-1[rpm]) | 9800 |
Working air pressure (MPa) | 0.62 |
Joint thread diameter (mm) | Rc1/4 (PT1/4) |
Air hose inner diameter (mm) | More than 10 |
Material | Multiple |
Single product mass (g) | 1270 |

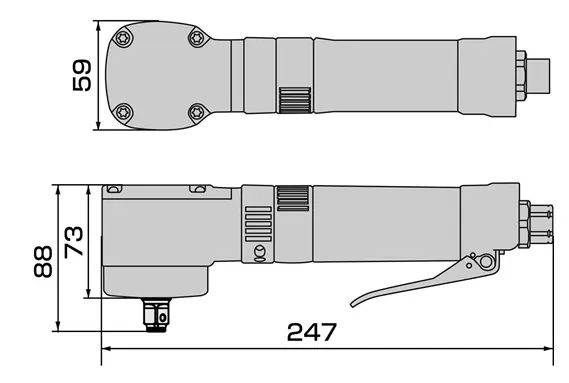

Single product dimensions (mm) w | 247 |
Single product dimensions (mm)d | 88 |
Single product dimensions (mm) h | 59 |
Quantity | 1 |
Small box quantity | Five |
