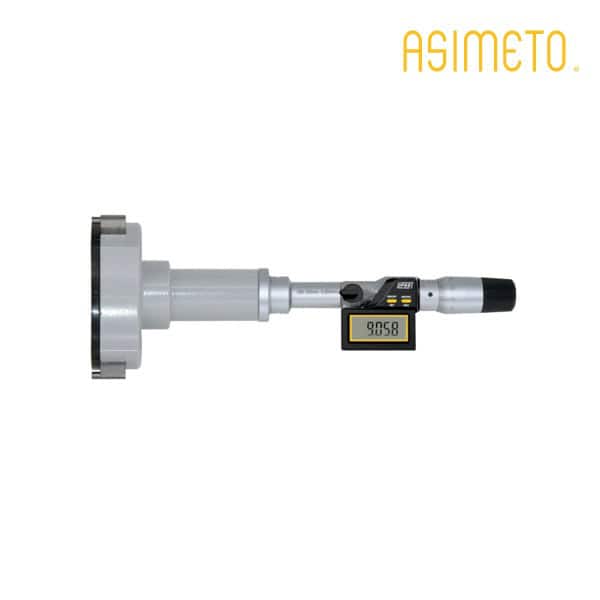

ASIMETO SERIES – 208 DIGITAL THREE POINT INTERNAL MICROMETERS (100-300mm/4.0-12.0″)

FEATURES

Resolution: 000005″ / 0.001mm
Ratchet stop
Measuring contact points are designed to allow measurements near to the bottom of blind hole
Additional extensions can be added to increase measuring depth
Measuring surfaces are carbide
Setting ring are not included with the set but ar optional
Support Bluetooth data transmission
Bluetooth data output: 901-01-5
Protection level IP65

Inch			Optional	Dimensions
Code No.	Range	Accuracy	Setting Ring	L	Extension Rod
208-34-1	4-5″	±.0002″	4″	145mm	150mm
208-35-1	5-6″	±.0002″	5″	145mm	150mm
208-36-1	6-7″	±.0002″	6″	145mm	150mm
208-37-1	7-8″	±.0002″	7″	145mm	150mm
208-38-1	8-9″	±.00028“	8″	145mm	150mm
208-39-1	9-10″	±.00028“	9″	145mm	150mm
208-40-1	10-11″	±.00028“	10″	145mm	150mm
208-41-1	11-12″	±.00028″	11″	145mm	150mm

Metric			Optional	Dimensions
Code No.	Range	Accuracy	Setting Ring	L	Extension Rod
208-34-0	100-125mm	0.005mm	100mm	145mm	150mm
208-35-0	125-150mm	0.005mm	125mm	145mm	150mm
208-36-0	150-175mm	0.005mm	150mm	145mm	150mm
208-37-0	175-200mm	0.005mm	175mm	145mm	150mm
208-38-0	200-225mm	0.007mm	200mm	145mm	150mm
208-39-0	225-250mm	0.007mm	225mm	145mm	150mm
208-40-0	250-275mm	0.007mm	250mm	145mm	150mm
208-41-0	275-300mm	0.007mm	275mm	145mm	150mm

ASIMETO SERIES – 208 DIGITAL THREE POINT INTERNAL MICROMETERS (12-100mm/.5-4.0″)

FEATURES

Resolution: 00005″ / 0.001mm
Ratchet stop
Setting ring supplied
Measuring contact points are designed to allow measurements near to the bottom of blind holes
Additional extensions can be added to increase the measuring depth
Measuring surfaces are carbide
Support Bluetooth data transmission
Bluetooth data output: 901-01-5
Protection level IP65

Inch				Dimensions
Code No.	Range	Accuracy	Setting Ring	L	A	Extension Rod
208-24-1	.5-.65″	±.0001″	.65″	80mm	0.5mm	150mm
208-25-1	.65-.8″	±.0001″	.65″	80mm	0.5mm	150mm
208-26-1	.8-1″	±.0001″	1″	90mm	0.5mm	150mm
208-27-1	1-1.2″	±.0002″	1″	90mm	0.5mm	150mm
208-28-1	1.2-1.6″	±.0002″	1.6″	97mm	0.5mm	150mm
208-29-1	1.6-2″	±.0002″	1.6″	97mm	0.5mm	150mm
208-30-1	2-2.5″	±.0002″	2.5″	114mm	0.5mm	150mm
208-31-1	2.5-3″	±.0002″	2.5″	114mm	0.5mm	150mm
208-32-1	3-3.5″	±.0002″	3.5″	114mm	0.5mm	150mm
208-33-1	3.5-4″	±.0002″	3.5″	114mm	0.5mm	150mm

Metric				Dimensions
Code No.	Range	Accuracy	Setting Ring	L	A	Extension Rod
208-24-0	12-16mm	0.004mm	16mm	80mm	0.5mm	150mm
208-25-0	16-20mm	0.004mm	16mm	80mm	0.5mm	150mm
208-26-0	20-25mm	0.004mm	25mm	90mm	0.5mm	150mm
208-27-0	25-30mm	0.004mm	25mm	90mm	0.5mm	150mm
208-28-0	30-40mm	0.004mm	40mm	97mm	0.5mm	150mm
208-29-0	40-50mm	0.005mm	40mm	97mm	0.5mm	150mm
208-30-0	50-63mm	0.005mm	62mm	114mm	0.5mm	150mm
208-31-0	62-75mm	0.005mm	62mm	114mm	0.5mm	150mm
208-32-0	75-88mm	0.005mm	87mm	114mm	0.5mm	150mm
208-33-0	87-100mm	0.005mm	87mm	114mm	0.5mm	150mm

ASIMETO SERIES – 208 DIGITAL TWO AND THREE POINT INTERNAL MICROMETERS (2-12mm/.08-.5″)

FEATURES

Resolution:
Digital models: .00005″ / 0.001mm
Mechanical models: .0001″ / 0.001mm
Digital models: Protection level IP65
Setting Ring supplied
Measuring contact points are designed to allow measurements near to the bottom of blind holes
Models up to and including 6mm / .24″ have two measuing points, models (over 6mm / .24″) with three measuring points
Digital models support Bluetooth data transmission
Bluetooth data output: 901-01-5

Inch				Dimensions
Code No.	Range	Accuracy	Setting Ring	L	A	Extension Rod
208-06-1	.08-.1″	±.0001″	.1″	12.5mm	–	–
208-07-1	.1-.12″	±.0001″	.1″	12.5mm	–	–
208-08-1	.12-.16″	±.0001″	.16″	22.5mm	–	–
208-09-1	.16-.2″	±.0001″	.16″	22.5mm	–	–
208-10-1	.2-.24″	±.0001″	.24″	22.5mm	–	–
208-10-5	.24-.28″	±.0001″	.24″	22.5mm	–	–
208-11-1	.275-.35″	±.0001″	.275″	53.5mm	0.5mm	100mm
208-12-1	.35-.425″	±.0001″	.35″	53.5mm	0.5mm	100mm
208-13-1	.425-.5″	±.0001″	.5″	53.5mm	0.5mm	100mm

Metric				Dimensions
Code No.	Range	Accuracy	Setting Ring	L	A	Extension Rod
208-06-0	2-2.5mm	0.004mm	2.5mm	12.5mm	–	–
208-07-0	2.5-3mm	0.004mm	2.5mm	12.5mm	–	–
208-08-0	3-4mm	0.004mm	4mm	22.5mm	–	–
208-09-0	4-5mm	0.004mm	5mm	22.5mm	–	–
208-10-0	5-6mm	0.004mm	6mm	22.5mm	–	–
208-11-0	6-8mm	0.004mm	6mm	53.5mm	0.5mm	100mm
208-12-0	8-10mm	0.004mm	8mm	53.5mm	0.5mm	100mm
208-13-0	10-12mm	0.004mm	10mm	53.5mm	0.5mm	100mm

ASIMETO SERIES – 209 THREE POINT INTERNAL MICROMETERS (12-100mm/.5-4.0″)

FEATURES

Graduation: .0002″ / 0.005mm
Ratchet stop
Setting ring supplied
Measuring contact points are designed to allow measurements near to the bottom of blind holes
Additional extensions can be added to increase the measuring depth
Measuring surfaces are carbide

Inch				Dimensions
Code No.	Range	Accuracy	Setting Ring	L	A	Extension Rod
209-24-1	.5-.65″	±0001″	.65″	80mm	0.5mm	150mm
209-25-1	.65-.8″	±.0001″	.65″	80mm	0.5mm	150mm
209-26-1	.8-1″	±.0001″	1″	90mm	0.5mm	150mm
209-27-1	1-1.2″	±.0002″	1″	90mm	0.5mm	150mm
209-28-1	1.2-1.6″	±.0002″	1.6″	97mm	0.5mm	150mm
209-29-1	1.6-2″	±.0002″	1.6″	97mm	0.5mm	150mm
209-30-1	2-2.5″	±.0002″	2.5″	114mm	0.5mm	150mm
209-31-1	2.5-3″	±.0002″	2.5″	114mm	0.5mm	150mm
209-32-1	3-3.5″	±.0002″	3.5″	114mm	0.5mm	150mm
209-33-1	3.5-4″	±.0002″	3.5″	114mm	0.5mm	150mm

Metric				Dimensions
Code No.	Range	Accuracy	Setting Ring	L	A	Extension Rod
209-24-0	12-16mm	0.004mm	16mm	80mm	0.5mm	150mm
209-25-0	16-20mm	0.004mm	16mm	80mm	0.5mm	150mm
209-26-0	20-25mm	0.004mm	25mm	90mm	0.5mm	150mm
209-27-0	25-30mm	0.004mm	25mm	90mm	0.5mm	150mm
209-28-0	30-40mm	0.004mm	40mm	97mm	0.5mm	150mm
209-29-0	40-50mm	0.005mm	40mm	97mm	0.5mm	150mm
209-30-0	50-63mm	0.005mm	62mm	114mm	0.5mm	150mm
209-31-0	62-75mm	0.005mm	62mm	114mm	0.5mm	150mm
209-32-0	75-88mm	0.005mm	87mm	114mm	0.5mm	150mm
209-33-0	87-100mm	0.005mm	87mm	114mm	0.5mm	150mm

ASIMETO SERIES – 209 TWO AND THREE POINT INTERNAL MICROMETERS (2-12mm/.08-.5″)

FEATURES

Graduation:00001″ / 0.001mm
Ratchet stop
Setting ring supplied
Measuring contact points are designed to allow measurements near to the bottom of blind holes
Models up to and including 6mm / .24 inch have two measuring points, models (over 6mm / .24 inch) with
three measuring points

Inch				Dimensions
Code No.	Range	Accuracy	Setting Ring	L	A	Extension Rod
209-06-1	.08-.1″	±.0001″	.1″	12.5mm	–	–
209-07-1	.1-.12″	±.0001″	.1″	12.5mm	–	–
209-08-1	.12-.16″	±.0001″	.16″	22.5mm	–	–
209-09-1	.16-.2″	±.0001″	.16″	22.5mm	–	–
209-10-1	.2-.24″	±.0001″	.24″	22.5mm	–	–
209-10-5	.24-.28″	±.0001″	.24″	22.5mm	–	–
209-11-1	.275-.35″	±.0001″	.275″	53.5mm	0.5mm	100mm
209-12-1	.35-.425″	±.0001″	.35″	53.5mm	0.5mm	100mm
209-13-1	.425-.5″	±.0001″	.5″	53.5mm	0.5mm	100mm

Metric				Dimensions
Code No.	Range	Accuracy	Setting Ring	L	A	Extension Rod
209-06-0	2-2.5mm	0.004mm	2.5mm	12.5mm	–	–
209-07-0	2.5-3mm	0.004mm	2.5mm	12.5mm	–	–
209-08-0	3-4mm	0.004mm	4mm	22.5mm	–	–
209-09-0	4-5mm	0.004mm	5mm	22.5mm	–	–
209-10-0	5-6mm	0.004mm	6mm	22.5mm	–	–
209-11-0	6-8mm	0.004mm	6mm	53.5mm	0.5mm	100mm
209-12-0	8-10mm	0.004mm	8mm	53.5mm	0.5mm	100mm
209-13-0	10-12mm	0.004mm	10mm	53.5mm	0.5mm	100mm

ASIMETO SERIES – 405 DIGITAL INDICATORS

Download : ASIMETO SERIES – 405 DIGITAL INDICATORS

Features

Resolution ：Inch: .0005″; .00005″;Metric: 0.01mm; 0.001mm
The maximum, minimum, or runout value can be displayed during measurement.
Tolerance measurement feature allows for the upper and lower tolerance for maximum and minimum.
Inch / Metric and ABS/INC conversion
Flat back (attached) and lug back supplied
Ø8mm stem diameter for metric models Ø3 / 8″ stem diameter for inch models
Cable data output: 900-20-0

Code No.	Range	Resolution	Accuracy
405-95-0	0-12.5mm / 0-0.5″	0.01 mm	+/- 0.02 mm
405-01-0	0-25mm / 0-1″	0.01 mm	+/- 0.02 mm
405-02-0	0-50mm / 0-2″	0.01 mm	+/- 0.02 mm
405-04-0	0-100mm / 0-4″	0.01 mm	+/- 0.03 mm
405-95-4	0-12.5mm / 0-0.5″	0.001 mm	+/- 0.004 mm
405-01-4	0-25mm / 0-1″	0.001 mm	+/- 0.005 mm
405-02-4	0-50mm / 0-2″	0.001 mm	+/- 0.006 mm
405-04-4	0-100mm / 0-4″	0.001 mm	+/- 0.008 mm

ASIMETO SERIES – 407 IP65 DIGITAL INDICATORS

Download : ASIMETO SERIES – 407 IP65 DIGITAL INDICATORS

Features

Resolution ：Inch: .0005″; .00005″;Metric: 0.01mm; 0.001mm
Absolute measurement
Tolerance measurement feature allows for the upper and lower tolerance for maximum and minimum.
Inch / Metric and ABS / INC conversion
Flat back (attached) and lug back supplied
Ø8mm stem diameter for metric models Ø3 / 8″ stem diameter for inch models
330 deg. screen rotation
Cable data output: 900-07-0 / 1
Wireless data output ：Transmitting Device : 901-00-2 / 7;Receiver Device: 901-00-3

Code No.	Range	Resolution	Accuracy
407-01-2	0-12.5mm / 0-0.5″	0.01 mm	+/- 0.02 mm
407-02-2	0-25mm / 0-1″	0.01 mm	+/- 0.02 mm
407-03-2	0-50mm / 0-2″	0.01 mm	+/- 0.02 mm
407-01-4	0-12.5mm / 0-0.5″	0.001 mm	+/- 0.004 mm
407-02-4	0-25mm / 0-1″	0.001 mm	+/- 0.005 mm
407-03-4	0-50mm / 0-2″	0.001 mm	+/- 0.006 mm

ASIMETO SERIES – INTERCHANGEABLE ANVIL OUTSIDE MICROMETERS Series 111

FEATURES

Resolution: .001″ / 0.01mm
Flatness: .00004″ / 1um
Ratchet stop
Interchangeable anvils provide wider measuring ranges
Carbide tipped measuring faces
Grey painted steel frame for models up to 12″ / 300mm
Grey welded pipe frame for models over 12″ / 300mm models

Range	Accuracy	Anvils	Standards	Code No.
0-150mm	0.006mm	6 pcs	5 pcs	111-06-0
150-300mm	0.008mm	6 pcs	6 pcs	111-12-0
0-100mm	0.005mm	4 pcs	3 pcs	111-04-6
100-200mm	0.007mm	4 pcs	4 pcs	111-08-6
200-300mm	0.009mm	4 pcs	4 pcs	111-12-6
300-400mm	0.011mm	4 pcs	2 pcs	111-16-0
400-500mm	0.013mm	4 pcs	2 pcs	111-20-0
500-600mm	0.015mm	4 pcs	2 pcs	111-24-0
600-700mm	0.016mm	4 pcs	2 pcs	111-28-0
700-800mm	0.018mm	4 pcs	2 pcs	111-32-0
800-900mm	0.020mm	4 pcs	2 pcs	111-36-0
900-1000mm	0.020mm	4 pcs	2 pcs	111-40-0

ASIMETO SERIES 101/103 OUTSIDE MICROMETERS

Download :ASIMETO SERIES 101/103 OUTSIDE MICROMETERS

Features

Graduation : Inch: .001″ / .0001″ ; Metric: 0.01mm / 0.001mm
Flatness: .000024″ / 0.6μm
Carbide tipped measuring faces
Ratchet Stop and Ratchet Thimble are optional
Grey painted steel frame

Range	Graduation	Accuracy	Code
0-25mm	0.01mm	0.004mm	103-01-4
25-50mm	0.01mm	0.004mm	103-02-4
50-75mm	0.01mm	0.005mm	103-03-4
75-100mm	0.01mm	0.005mm	103-04-4
100-125mm	0.01mm	0.006mm	103-05-4
125-150mm	0.01mm	0.006mm	103-06-4
150-175mm	0.01mm	0.007mm	103-07-4
175-200mm	0.01mm	0.007mm	103-08-4
200-225mm	0.01mm	0.008mm	103-09-4
225-250mm	0.01mm	0.008mm	103-10-4
250-275mm	0.01mm	0.009mm	103-11-4
275-300mm	0.01mm	0.009mm	103-12-4
0-25mm	0.001mm	0.004mm	103-01-6
25-50mm	0.001mm	0.004mm	103-02-6
50-75mm	0.001mm	0.005mm	103-03-6
75-100mm	0.001mm	0.005mm	103-04-6
100-125mm	0.001mm	0.006mm	103-05-6
125-150mm	0.001mm	0.006mm	103-06-6
150-175mm	0.001mm	0.007mm	103-07-6
175-200mm	0.001mm	0.007mm	103-08-6
200-225mm	0.001mm	0.008mm	103-09-6
225-250mm	0.001mm	0.008mm	103-10-6
250-275mm	0.001mm	0.009mm	103-11-6
275-300mm	0.001mm	0.009mm	103-12-6

Range	Graduation	Accuracy	Code
0-25mm	0.01mm	0.004mm	101-01-0
25-50mm	0.01mm	0.004mm	101-02-0
50-75mm	0.01mm	0.005mm	101-03-0
75-100mm	0.01mm	0.005mm	101-04-0
100-125mm	0.01mm	0.006mm	101-05-0
125-150mm	0.01mm	0.006mm	101-06-0
150-175mm	0.01mm	0.007mm	101-07-0
175-200mm	0.01mm	0.007mm	101-08-0
200-225mm	0.01mm	0.008mm	101-09-0
225-250mm	0.01mm	0.008mm	101-10-0
250-275mm	0.01mm	0.009mm	101-11-0
275-300mm	0.01mm	0.009mm	101-12-0
0-25mm	0.001mm	0.004mm	101-01-2
25-50mm	0.001mm	0.004mm	101-02-2
50-75mm	0.001mm	0.005mm	101-03-2
75-100mm	0.001mm	0.005mm	101-04-2
100-125mm	0.001mm	0.006mm	101-05-2
125-150mm	0.001mm	0.006mm	101-06-2
150-175mm	0.001mm	0.007mm	101-07-2
175-200mm	0.001mm	0.007mm	101-08-2
200-225mm	0.001mm	0.008mm	101-09-2
225-250mm	0.001mm	0.008mm	101-10-2
250-275mm	0.001mm	0.009mm	101-11-2
275-300mm	0.001mm	0.009mm	101-12-2

ASIMETO SERIES- 315 ABS HEVY DUTY DIGITAL CALIPERS (WITH UPPER JAWS)

Features

Resolution: .0005″ / 0.01mm
Designed with fine adjustment to allow precise movement of the slider
Internal measurement jaws are rounded to provide accurate measurement of internal diameters
Minimum internal diameter measurement capability of 20mm
Inch/Metric conversion
Zero setting at any position
Models are available with or without upper jaws Absolute delivery reliable measurement
Cable data output: 900-05-4/5Wireless data output:Transmitting Device:901-00-4/6Receiver Device: 901-00-3
Bluetooth data output: 901-01-2/4

Range	Resolution	Accuracy	Jaw Length	Code No.
0-300mm / 0-12″	0.01mm	± 0.04mm	90mm	315-12-8
0-500mm / 0-20″	0.01mm	± 0.05mm	150mm	315-20-8
0-800mm / 0-32″	0.01mm	± 0.07mm	150mm	315-32-8
0-1000mm / 0-40″	0.01mm	± 0.07mm	150mm	315-40-8

ASIMETO SERIES- 315 ABS HEVY DUTY DIGITAL CALIPERS (WITHOUT UPPER JAWS)

Features

Resolution: .0005″ / 0.01mm
Designed with fine adjustment to allow precise movement of the slider
Internal measurement jaws are rounded to provide accurate measurement of internal diameters
Minimum internal diameter measurement capability of 20mm
Inch/Metric conversion
Zero setting at any position
Models are available with or without upper jaws Absolute delivery reliable measurement
Cable data output: 900-05-4/5Wireless data output:Transmitting Device:901-00-4/6Receiver Device: 901-00-3
Bluetooth data output: 901-01-2/4

WITHOUT UPPER JAWS

Inch

Metric

Dimensions

Code No.

Range

Resolution

Accuracy

Range

Resolution

Accuracy

Jaw Length

315-12-6

0-12″

.0005″

±.0015″

0-300mm

0.01mm

±0.04mm

90mm

470mm

90mm

20mm

5mm

18mm

315-20-6

0-20″

.0005″

±.002″

0-500mm

0.01mm

±0.05mm

150mm

680mm

150mm

24mm

10mm

18mm

315-24-6

0-24″

.0005″

±.002″

0-600mm

0.01mm

±0.05mm

100mm

730mm

100mm

24mm

10mm

18mm

351-32-6

0-32″

.0005″

±.003″

0-800mm

0.01mm

±0.07mm

150mm

1030mm

150mm

30mm

10mm

25mm

315-40-6

0-40″

.0005″

±.003″

0-1000mm

0.01mm

±0.07mm

150mm

1230mm

150mm

30mm

10mm

25mm

ASIMETO SERIES-102 OUTSIDE MICROMETERS

FEATURES

Graduation:
Inch: .001″
Metric: 0.01mm
Flatness: 0.6µm
Carbide tipped measuring faces
Ratchet stop

Range	Accuracy	Code No.
0-25mm	0.004mm	102-01-0
25-50mm	0.004mm	102-02-0
50-75mm	0.005mm	102-03-0
75-100mm	0.005mm	102-04-0
100-125mm	0.006mm	102-05-0
125-150mm	0.006mm	102-06-0

ASIMETO SERIES-105 DIGITAL OUTSIDE MICROMETERS

FEATURES

Resolution:
Digital: .00005″ / 0.001mm
Scale: .0001″ / 0.01mm
Flatness: .000012″ / 0.3μm
Protection level IP65
Read the actual absolute measuring position after switching on the display
Automatic On/Off to maximize battery life
Inch/Metric conversion
Absolute or incremental measuring modes
Carbide tipped measuring faces
Support Bluetooth data transmission
Bluetooth data output: 901-01-5

Range	Accuracy	Thimble	Code No.
0-25mm / 0-1″	± 0.002mm	Ratchet	105-01-0
25-50mm / 1-2″	± 0.002mm	Ratchet	105-02-0
50-75mm / 2-3″	± 0.003mm	Ratchet	105-03-0
75-100mm / 3-4″	± 0.003mm	Ratchet	105-04-0
100-125mm / 4-5″	± 0.003mm	Ratchet	105-05-0
125-150mm / 5-6″	± 0.003mm	Ratchet	105-06-0
150-175mm / 6-7″	± 0.004mm	Ratchet	105-07-0
175-200mm / 7-8″	± 0.004mm	Ratchet	105-08-0
200-225mm / 8-9″	± 0.004mm	Ratchet	105-09-0
225-250mm / 9-10″	± 0.004mm	Ratchet	105-10-0
250-275mm / 10-11″	± 0.005mm	Ratchet	105-11-0
275-300mm / 11-12″	± 0.005mm	Ratchet	105-12-0

ASIMETO SERIES-105 IP65 OUTSIDE MICROMETERS

Features

Resolution: .00005″ / 0.001mm
Flatness: .000012″ / 0.3μm
Protection level IP65
Cable data output: 900-05-4 / 5
Wireless data output :Transmitting device: 901-00-4 / 6,Receiver device: 901-00-3
Carbide tipped measuring faces
Upon switch on the display will read the actual absolute measuring position
Automatic off to maximize battery life
Inch / Metric conversion
Absolute or incremental measuring modes
Grey painted steel frame

Code No.	Range	Accuracy	Thimble
105-01-4	0-25 mm / 0-1″	±0.002 mm	Dual Ratchets
105-02-4	25-50 mm / 1-2″	±0.002 mm	Dual Ratchets
105-03-4	50-75 mm / 2-3″	±0.003 mm	Dual Ratchets
105-04-4	75-100 mm / 3-4″	±0.003 mm	Dual Ratchets
105-05-4	100-125 mm / 4-5″	±0.003 mm	Dual Ratchets
105-06-4	125-150 mm / 5-6″	±0.003 mm	Dual Ratchets

ASIMETO SERIES-116 DIGITAL OUTSIDE MICROMETERS

Features

Resolution： .00005″ / 0.001mm
Carbide tipped measuring faces
Spindle dia.: 0.25″
Painted frame
Ratchet friction thimble
Inch / Metric conversion
Absolute or incremental measuring modes
Automatic On / Off to maximize battery life

Code No.	Range	Accuracy
116-01-0	0-25 mm / 0-1″	±0.002 mm
116-02-0	25-50 mm / 1-2″	±0.002 mm
116-03-0	50-75 mm / 2-3″	±0.003 mm
116-04-0	75-100 mm / 3-4″	±0.003 mm
116-05-0	100-125 mm / 4-5″	±0.003 mm
116-06-0	125-150 mm / 5-6″	±0.003 mm
116-07-0	150-175 mm / 6-7″	±0.004 mm
116-08-0	175-200 mm / 7-8″	±0.004 mm

ASIMETO SERIES-116 IP54 DIGITAL OUTSIDE MICROMETERS

FEATURES

Resolution: .00005″ / 0.001mm
Protection level IP54
Carbide tipped measuring faces
Inch/Metric conversion
Absolute or incremental measuring modes
Automatic Off to maximize battery life
Data Output:
Cable data output: 900-07-0/5
Bluetooth data output: 901-01-0/3

Range	Accuracy	Code No.
0-25mm / 0-1″	± 0.002mm	116-01-2
25-50mm / 1-2″	± 0.002mm	116-02-2
50-75mm / 2-3″	± 0.003mm	116-03-2
75-100mm / 3-4″	± 0.003mm	116-04-2
100-125mm / 4-5″	± 0.003mm	116-05-2
125-150mm / 5-6″	± 0.003mm	116-06-2

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

Cookie	Duration	Description
__utma	2 years	Used to distinguish users and sessions. The cookie is created when the javascript library executes and no existing __utma cookies exists. The cookie is updated every time data is sent to Google Analytics.
__utmb	30 mins	Used to determine new sessions/visits. The cookie is created when the javascript library executes and no existing __utmb cookies exists. The cookie is updated every time data is sent to Google Analytics.
__utmc	End of browser session	Using by Google Analytics. Not used in ga.js. Set for interoperability with urchin.js. Historically, this cookie operated in conjunction with the __utmb cookie to determine whether the user was in a new session/visit.
__utmv	2 years	Used to store visitor-level custom variable data. This cookie is created when a developer uses the _setCustomVar method with a visitor level custom variable. This cookie was also used for the deprecated _setVar method. The cookie is updated every time data is sent to Google Analytics.
__utmz	6 months	Stores the traffic source or campaign that explains how the user reached your site. The cookie is created when the javascript library executes and is updated every time data is sent to Google Analytics.
message	-	This cookie is used to identify a website visitor that logged in or not. It contains a token that is used to know the website visitor status.
