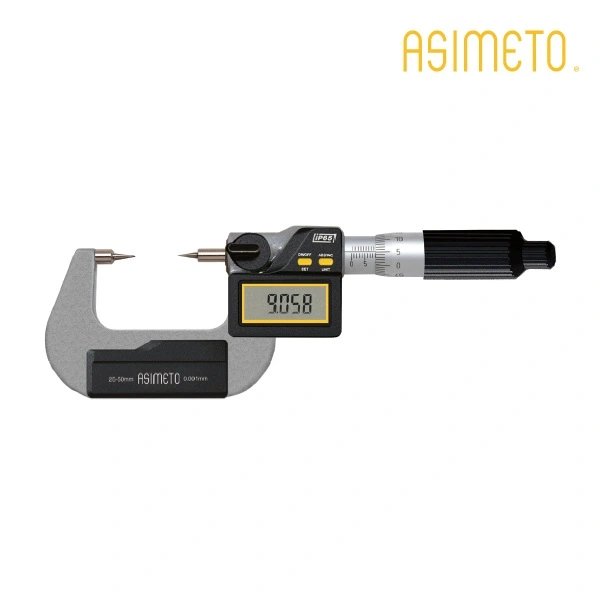

FEATURES
- Resolution:
Digital reading: 000005″ / 0.001mm
- Ratchet stop
- 15 degree and 30 degree measuring points are available
- For measuring the web thickness of drills, small grooves, and other hard to reach dimensions
- Carbide tipped measuring faces
- Grey painted steel frame
- Upon switching on the display will read the actual absolute measuring position
- Automatic On/Off to maximize battery life
- Absolute or incremental measuring modes
- Support Bluetooth data transmission Bluetooth data output : 901-01-5
- Protection level IP65

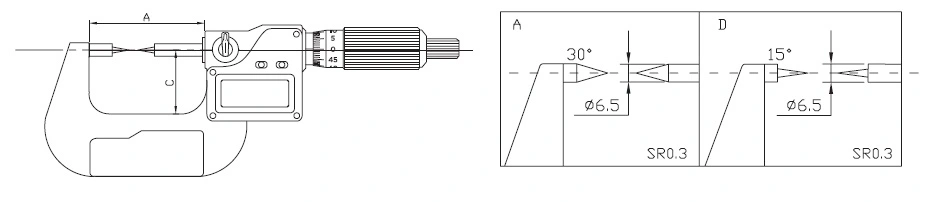

Anvil Type D 15° | Anvil Type A 30° | Dimensions | |||
Code No. | Code No. | Range | Accuracy | A | C |
126-01-1 | 126-01-3 | 0-1″ | ±0001″ | 57mm | 32mm |
126-02-1 | 126-02-3 | 1-2″ | ±0002″ | 82mm | 44.5mm |
126-03-1 | 126-03-3 | 2-3″ | ±0002″ | 107mm | 57mm |
126-04-1 | 126-04-3 | 3-4″ | ±0002″ | 132.6mm | 69.5mm |
Anvil Type D 15° | Anvil Type A 30° | Dimensions | |||
Code No. | Code No. | Range | Accuracy | A | C |
126-01-0 | 126-01-2 | 0-25mm | ±0.002mm | 57mm | 32mm |
126-02-0 | 126-02-2 | 25-50mm | ±0.002mm | 82mm | 44.5mm |
126-03-0 | 126-03-2 | 50-75mm | ±0.003mm | 107mm | 57mm |
126-04-0 | 126-04-2 | 75-100mm | ±0.003mm | 132.6mm | 69.5mm |
