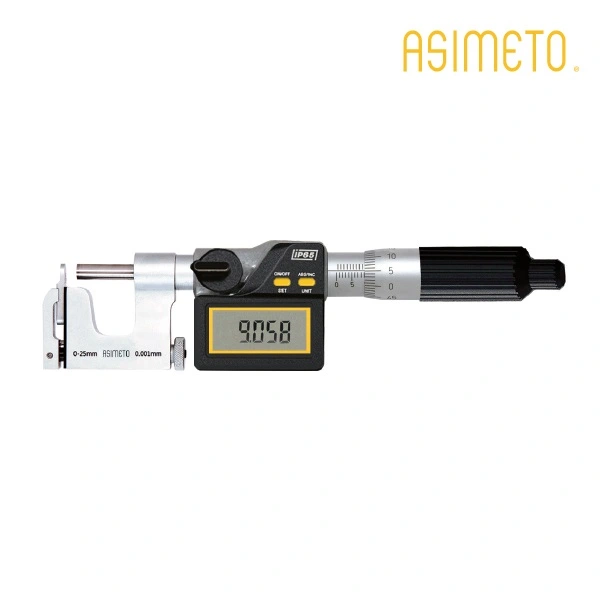

ASIMETO – SERIER 125 MULTI – ANVIL MICROMETERS

Digital reading: .00005″ / 0.001mm

Categories: Dimension, Products

Description
Additional information

FEATURES

Resolution:
Digital reading: .00005″ / 0.001mm
Ratchet stop
Measures tube thickness, shoulder edge distance rivet head height, with interchangeable anvils (Flat Anvil, Rod Anvil, V-anvil)
Inch/Metric conversion
Upon switching on the display will read the actual absolute measuring position
Carbide tipped measuring faces
Automatic On/Off to maximize battery life
Chrome-plated steel feet frame
Absolute or incremental measuring modes
Support Bluetooth data transmission Bluetooth data output: 901-01-5
Protection level IP65

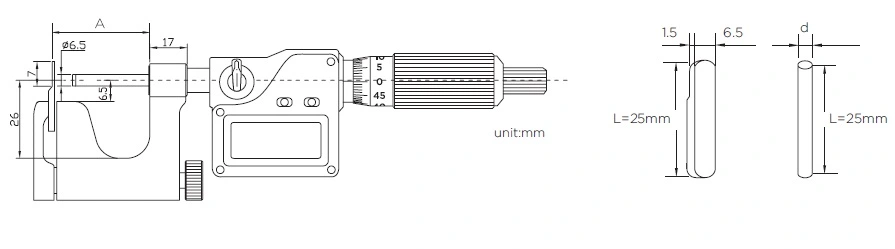

Inch			Dimensions
Code No.	Range	Accuracy	A	d
125-01-1	0-1″	±.0001″	28.5mm	Ø3mm
125-02-1	1-2″	±.0002″	53.5mm	Ø5mm

Metric			Dimensions
Code No.	Range	Accuracy	A	d
125-01-0	0-25mm	±0.002mm	28.5mm	Ø3mm
125-02-0	25-50mm	±0.002mm	53.5mm	Ø5mm

Brand	ASIMETO
