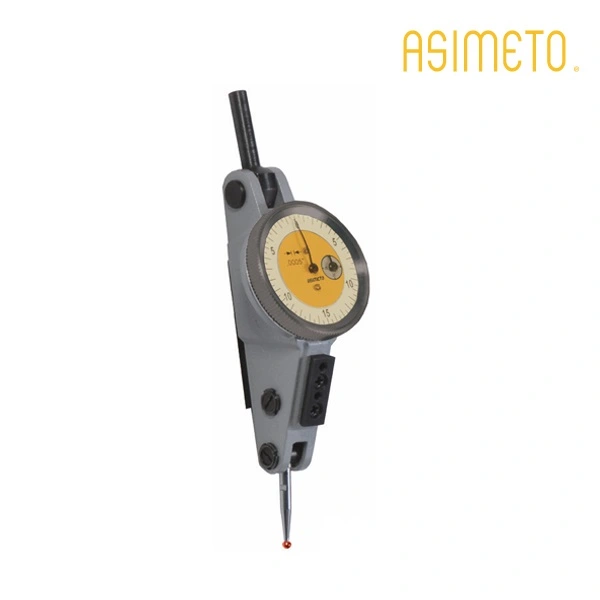

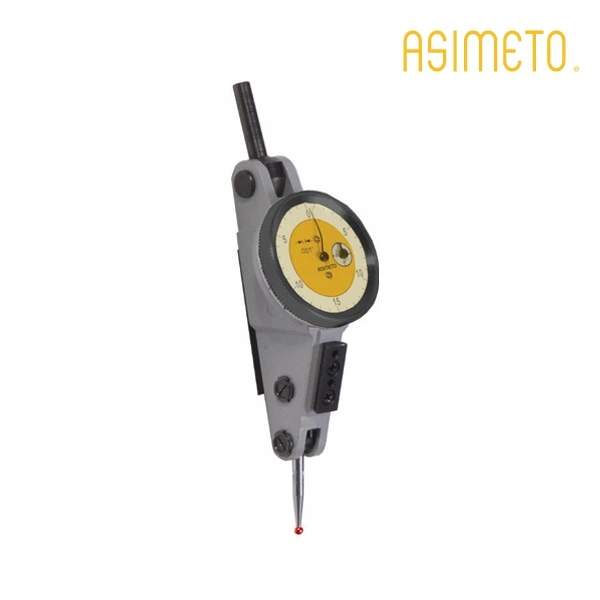

ASIMETO – SERIES 503 EXTENDED RANGE DIAL TEST INDICATORS

Download : ASIMETO – SERIES 503 EXTENDED RANGE DIAL TEST INDICATORS

FEATURES

Graduation: Inch: .0005″ / .001″ Metric: 0.01mm
Jeweled bearing design and resistant to magnetic fields.
Ø4mm stem diameter for metric models.
Ø5/32″ stem diameter for inch models.
Ruby contact point swivel 210 degrees.
Horizontal and vertical models are available.

Vertical

Dimensions

Code No.

Range

Resolution

Dial Reading

Accuracy

Note

Ø30mm/Ø1.18″ Dia.

503-06-1

.060″

.001″

0-15-0

±.0012″

Horizontal

91mm

64mm

30mm

36mm

19.7mm

12.3mm

503-56-1

.060″

.0005″

0-15-0

±.0012″

Horizontal

91mm

64mm

30mm

36mm

19.7mm

12.3mm

503-06-3

.060″

.001″

0-15-0

±.0012″

Vertical

66mm

57.5mm

30mm

12mm

8.5mm

20mm

12.3mm

503-56-3

.060″

.0005″

0-15-0

±.0012″

Vertical

66mm

57.5mm

30mm

12mm

8.5mm

20mm

12.3mm

Ø38mm/Ø1.50″ Dia.

504-56-1

.060″

.0005″

0-15-0

±.0012″

Horizontal

91mm

64mm

38mm

36mm

19.7mm

12.3mm

504-56-3

.060″

.0005″

0-15-0

±.0012″

Vertical

66mm

57.5mm

38mm

12mm

8.5mm

20mm

12.3mm

Horizontal

Dimensions

Code No.

Range

Resolution

Dial Reading

Accuracy

Note

Ø30mm/Ø1.18″ Dia.

503-56-0

1.6mm

0.01mm

0-40-0

0.02mm

Horizontal

91mm

64mm

30mm

36mm

19.7mm

12.3mm

503-56-2

1.6mm

0.01mm

0-40-0

0.02mm

Vertical

66mm

57.5mm

30mm

12mm

8.5mm

20mm

12.3mm

Ø38mm/Ø1.50″ Dia.

504-56-0

1.6mm

0.01mm

0-40-0

0.02mm

Horizontal

91mm

64mm

38mm

36mm

19.7mm

12.3mm

504-56-2

1.6mm

0.01mm

0-40-0

0.02mm

Vertical

66mm

57.5mm

38mm

12mm

8.5mm

20mm

12.3mm

Brand	ASIMETO
