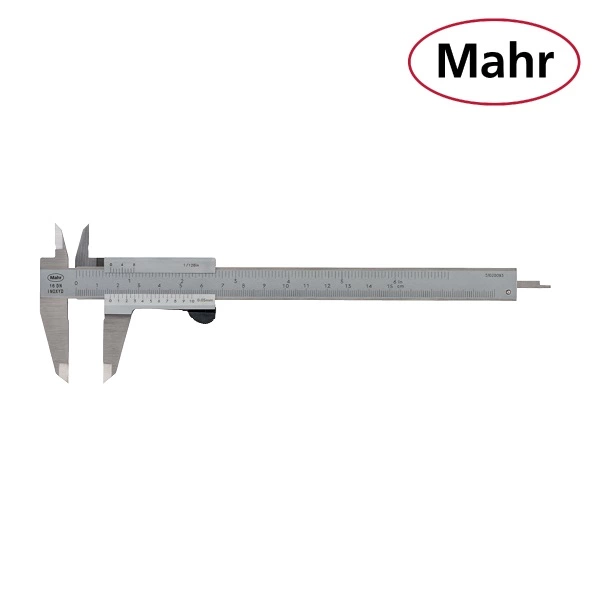

MAHR MARCAL 16 DN CALIPER WITH ANALOG DISPLAY

FEATURES

Vernier and scale have a satin chrome finish for glare free reading
Thumb clamp
Measuring surfaces made of steel
Measuring blade for inside measurements
Slide and beam made of hardened stainless steel
Step measuring function
Raised guideway for the protection of the scale
Package contains : thread table, case

SKU: TMA-21 Categories: Dimension, Products

Description
Additional information

Download: Mahr MarCal 16 DN Data Sheet

TECHNICAL DATA

Order no.	Type	Measuring range Measuring range inch		Vernier value	Vernier value	Error limit Error limit inches (text)		Standard Depth rod
mm			inch	mm	inch	mm	inch
4100600	16 DN	0 –150	0 –6”	0.05	1/128”	0.05	.002”	DIN 862	rectangular

Brand	Mahr
