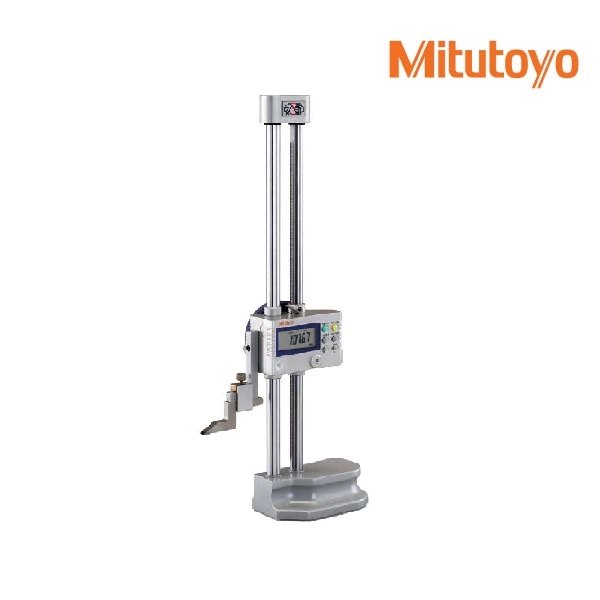

MITUTOYO SERIES 192 DIGIMATIC HEIGHT GAGE

MITUTOYO SERIES 192 DIGIMATIC HEIGHT GAGE

Standard Type with SPC Data Output

FEATURES

Switchable resolution (.0002”/0.005mm or .0005”/0.01mm)
Easy-to-use standard type.
Carbide-tipped scriber is provided.
Double-column structure ensures high measuring accuracy.
Coarse/fine feed switching.
Two preset reference heights.

SKU: TMI-185 Categories: Dimension, Products

Description
Additional information

Download: Mitutoyo Series 192 Data Sheet

SPECIFICATIONS

Inch/Metric

Range	Order No.	Accuracy	Resolution	Mass (kg)
0-12”/0-300mm	192-630-10	±001”	.0005”(0.01mm) [.0002”(0.005mm) Switchable)]	4.7
0-18”/0-450mm	192-631-10	±002”	.0005”(0.01mm) [.0002”(0.005mm) Switchable)]	7.5
0-24”/0-600mm	192-632-10	±002”	.0005”(0.01mm) [.0002”(0.005mm) Switchable)]	8.3
0-40”/0-1000mm	192-633-10	±003”	.0005”(0.01mm) [.0002”(0.005mm) Switchable)]	15.7

Metric

Range	Order No.	Accuracy	Resolution	Mass (kg)
0-300mm	192-613-10	±0.02mm	Switchable between 0.01mm and 0.005mm	4.7
0-600mm	192-614-10	±0.05mm	Switchable between 0.01mm and 0.005mm	8.3
0-1000mm	192-615-10	±0.07mm	Switchable between 0.01mm and 0.005mm	15.7

Brand	MITUTOYO
