MITUTOYO SERIES 422 ,122 BLADE MICROMETERS

MITUTOYO SERIES 422 ,122 BLADE MICROMETERS

Non-Rotating Spindle Type

FEATURES

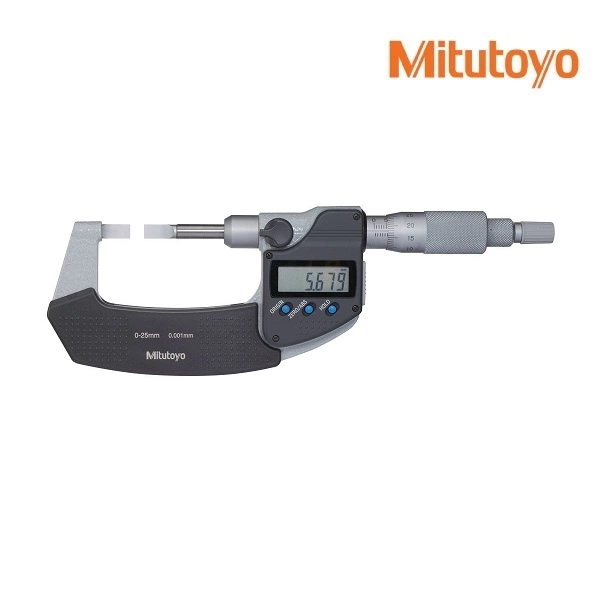

The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways and other hard-to-reach areas.
With ratchet stop for constant force.
Non-slip grip finish (digital models).
Speedy spindle feed of .4”/10mm /rev. (Quickmike type).
With a standard bar except 0 – 1” and 0 -25mm model.
Supplied in fitted plastic case.

SKU: TMI-69 Categories: Dimension, Products

Description
Additional information

Download: Mitutoyo Series 422, 122 Data Sheet

SPECIFICATIONS

Metric Digital model

Range	Resolution	Order No.	Accuracy	Remarks	Mass (g)
0 – 25mm	0.001mm	422-230-30	±3µm	Type A	365
		422-260-30	±3µm	Type B	365
		422-270-30	±3µm	Type C	365
		422-271-30	±3µm	Type D	365
25 – 50mm	0.001mm	422-231-30	±3µm	Type A	565
25 – 50mm	0.001mm	422-261-30	±3µm	Type B	565
50 – 75mm	0.001mm	422-232-30	±3µm	Type A	465
75 – 100mm	0.001mm	422-233-30	±4µm	Type A	580

Metric Quickmike type

Range	Resolution	Order No.	Accuracy	Mass (g)
0 – 30mm	0.001mm	422-411	±3µm	350
25 – 55mm	0.001mm	422-412	±3µm	490

Metric

Range	Graduation	Order No.	Accuracy	Remarks	Mass (g)
0 – 25mm	0.01mm	122-101	±3µm	Type A	260
		122-111	±3µm	Type B	260
		122-161	±3µm	Type C	275
		122-141	±3µm	Type D	275
25 – 50mm	0.01mm	122-102	±3µm	Type A	300
		122-112	±3µm	Type B	300
		122-162	±3µm	Type C	315
		122-142	±3µm	Type D	315
50 – 75mm	0.01mm	122-103	±3µm	Type A	360
75 – 100mm	0.01mm	122-104	±4µm	Type A	525
100 – 125mm	0.01mm	122-105	±4µm	Type A	670
125 – 150mm	0.01mm	122-106	±4µm	Type A	775
150 – 175mm	0.01mm	122-107	±5µm	Type A	950
175 – 200mm	0.01mm	122-108	±5µm	Type A	1140

Inch/Metric Digital model

Range	Resolution	Order No.	Accuracy	Remarks	Mass (g)
0 – 1″ / 0 – 25.4mm	.00005″ / 0.001mm	422-330-30	±.00015″	Type A	365
		422-360-30	±.00015″	Type B	365
		422-370-30	±.00015″	Type C	365
		422-371-30	±.00015″	Type D	365
1 – 2″ / 25.4 – 50.8mm	.00005″ / 0.001mm	422-331-30	±.00015″	Type A	565
1 – 2″ / 25.4 – 50.8mm	.00005″ / 0.001mm	422-361-30	±.00015″	Type B	565
2 – 3″ / 50.8 – 76.2mm	.00005″ / 0.001mm	422-332-30	±.00015″	Type A	465
3 – 4″ / 76.2 – 101.6mm	.00005″ / 0.001mm	422-333-30	±.0002″	Type A	580

Inch/Metric Quickmike type

Range	Resolution	Order No.	Accuracy	Remarks	Mass (g)
0 – 1.2″ / 0 – 30.48mm	.00005″ / 0.001mm	422-421	±.00015″	Type A	350
1 – 2.2″ / 25.4 – 55.88mm	.00005″ / 0.001mm	422-422	±.00015″	Type A	490

Inch

Range	Graduation	Order No.	Accuracy	Remarks	Mass (g)
0 – 1″	.0001″	122-125	±.00015″	Type A	260
		122-135	±.00015″	Type B	260
		122-151	±.00015″	Type D	275
1 – 2″	.0001″	122-126	±.00015″	Type A	300
2 – 3″	.0001″	122-127	±.00015″	Type A	360
3 – 4″	.0001″	122-128	±.0002″	Type A	525

Brand	MITUTOYO
