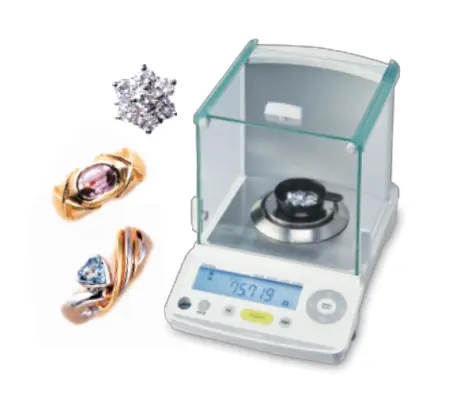

SHIMADZU TX 423L / TXC 623L – Analytical Balance

Value With No Compromise Jewelry & Gold Balances

UniBloc

Shimadzu introduced one piece force cell technology for precision balances in 1989. The Today’s UniBloc is created by
high-precision wire electrical discharge machining applied to a block of aluminum alloy, and replaces the conventional
electro-magnetic balance sensor assembly. UniBloc’s compact,uniform structure ensures stable temperature characteristics,
excellent response and stable performance. The UniBloc design permits a consistancy of production that assures reliability and a
long operational life.

WindowsDirect

The balance communicates directly to a PC with Windows applications. No additional software is needed to interface with

spreadsheets, databases, word processing, and laboratory software. WindowsDirect works with Windows 95, 98, 2000, NT4.0, ME and XP.

PC must be IBM PC/AT compatible.

WindowsDirect Function

If you’d like to use “WindowsDirect” with “Windows VISTA”, Windows 7 or USB port, please contact to our distributors.

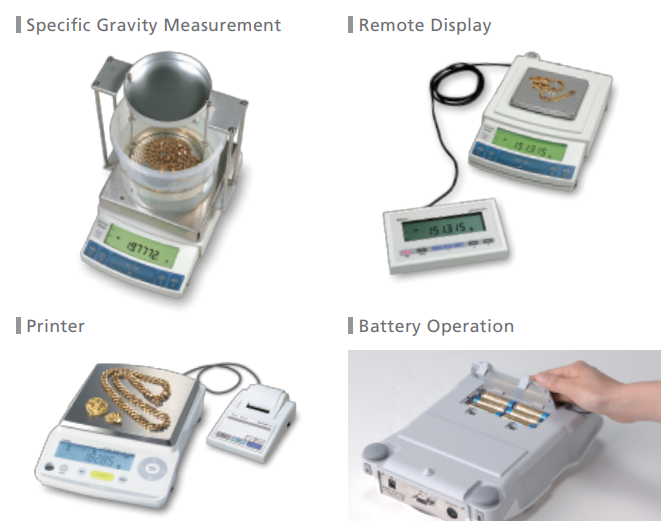

Optional Accessories to Meet All Your Requirements

SHIMADZU Balances
for All Your Weighing Applications
Weighing Gold in a Local Unit
Various weighing units including Tael (Hong Kong, Taiwan, Singapore, Malaysia, China) plus user-dened unit are
available. (All series)
Counting Coins or Parts
Piece counting function is standard. (All series)
Pass/Fail Checkweighing
According to the user-preset thresholds, GO(pass), HI(over) or LO(under) will be displayed. (UX-G/UW/UX series)
Production/Sales Management Using Computer
WindowsDirect function directly types the weighed results to any Windows application you are using (e.g. Excel)
without interface software required. (T series, UX-G/UW/UX)
Using the Balance in a Retail Shop
Second display for visitors is optionally available. Second display equipped with operation keys is also available.
(UX-G/UW/UX)
Battery Operation (TXB ELB)
TXB and ELB are operated with dry batteries. Suitable for sites where reliable power supply is not available.
Purity Determination of Gold
Optional kit and standard software makes density measurement efcient. For conguring your own system,
below-weigh hook is standard or optionally available. (UW, UX, ELB series)
Automatic Calibration
The models with a built-in calibration weight can maintain accuracy without using external calibration weights.
Calibration is performed with key touch only (TW/TWC/UW). PSC and Clock-CAL fully-automatic calibration
functions are standard depending on the series. PSC performs calibration automatically when ambient temperature
change makes it necessary. With Clock-CAL, automatic calibration can be set to occur at up to three specic times
per day. (UW series)

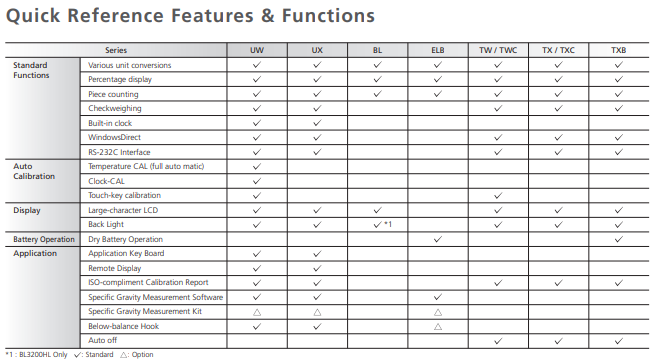

The availability of the functions, features and options described here depends on the series and models.
