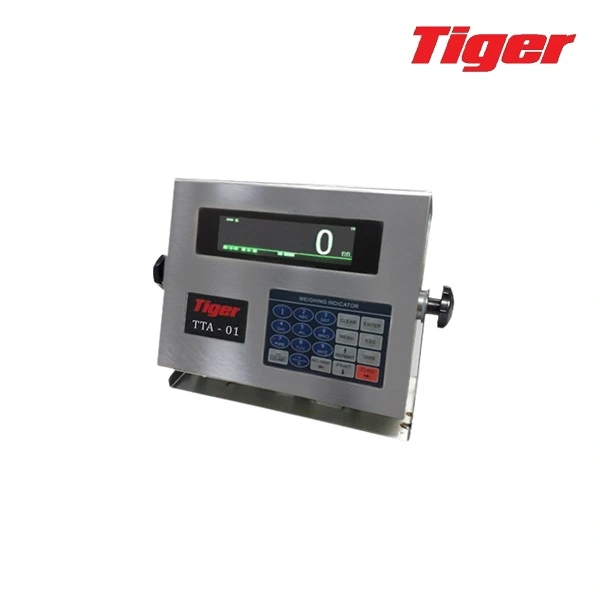

TIGER – TTA- 01 ANALOG TRUCKSCALE STAINLESS INDICATOR

TIGER – TTA- 01 ANALOG TRUCKSCALE STAINLESS INDICATOR

INDICATOR USING NOTES

Indicator ground wire must be complying with electrical safety regulations, junction box; load cell must be well grounded.

Connection between digital load cell and indicator must be reliable, load cell shield wire must be grounded.

all cable does not allow plug / unplug when indicator is connecting to power supply, to protect indicator or load cell from electrostatic.

Thunderstorm season, system must have reliable lightning protection measures, to protect load cell and indicator.

Make sure operators’ safety and weighing equipments running safely.

limited using for flammable gas, or flammable vapor areas, or tank system with pressure.

keep indicator and load cell away from strong electric magnetic field, corrosive substances and explosive materials.

Ado not sue strong solvents( such as: benzene, nitro-class oil) to clean the cover.

do not inject liquid or other conductive particles into indicator.

without technical supervision department’s promise, no one can open the seals, or calibrate..

to ensure indicator display clearly, and work longer, do not use it under direct sunlight, and put it stable.

indicator should be away from dust, vibration, wet environment.

before plugging/unplugging, pls cut off indicator or other equipments’ power.

connecting each connector as the manual book.

That indicator is precision measuring instrument, to ensure accuracy, do not open it without authorization.
