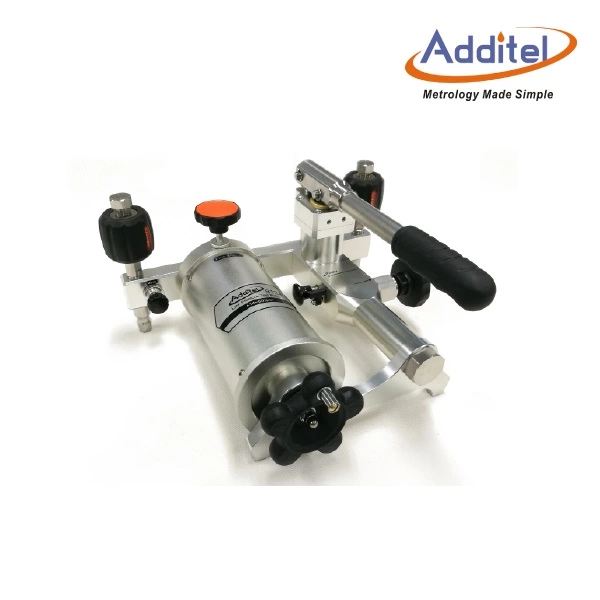

Additel 912A Low Pressure Test Pump

FEATURES

Portable: Only 6.2 lb (2.8 kg)
Adjustment Resolution
0.1 Pa (0.001 mbar) High-quality screw press for fine pressure adjustment
Great Stability
Isothermal chamber: the pressure chamber is insulated to reduce the influence from environmental temperature changes Specially designed bellows minimize leakage to guarantee excellent stability Shut-off valve closes the air in the isothermal chamber during calibration
Durable and Minimal Maintenance
Built-in gas-liquid isolator protects the pump from moisture and dirt
Easy-to-use
Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches

SKU: 912A Categories: Pressure & Vacuum, Products

Specifications

Media	Air
Generated Pressure Range	95% vacuum to 60 psi (4 bar) positive pressure
Adjustment Resolution	0.1 Pa (0.001 mbar).
Material	Ram/adapters: SS
	Body: SS/aluminum
	Seals: Buna-N
Connection	Hand-tight connectors for both test gauge and reference gauge.
	Test Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female
	Reference Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female
Dimensions	Height: 5.51″ (140 mm)
Dimensions	Base: 10.75″ (273 mm) x 10.16″ (258 mm)
Weight	6.2 lb (2.8 kg).
Warranty	1 year

Brand	Additel
