Features

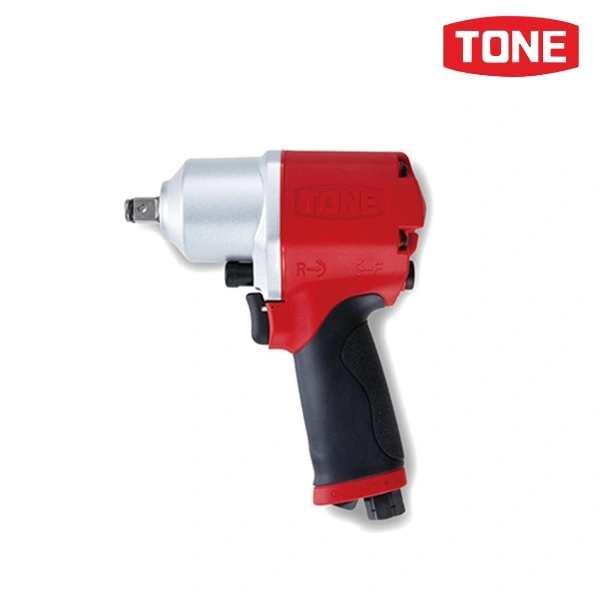

TONE – AI4160 AIR IMPACT WRENCH :
- A compact, lightweight, high-power air impact wrench with a maximum torque of 470 N · m and a mass of 1.2 kg.
- Uses twin hammers for compact and high power.
- With 3 steps of forward rotation and 2 steps of reverse rotation output adjustment lever.
- Step less output adjustment is possible with the pull of the switch.
- A sturdy magnesium hammer case and a specially reinforced resin body are used to reduce weight.
- The shape is easy to grip and has a soft grip that reduces vibration.
- With a rotary joint that prevents the hose from twisting.
Specification
| Rated Max. Torque | 470 Nㆍm |
| No-load Speed | 10,000 min-1[rpm] |
| Air Pressure | 0.62 MPa |
Max Air Consumption |
858 ℓ/min (ntp) |
| 128 ℓ/min (op) | |
| Air intake | Rc1/4 (PT1/4) |
| Air Hose Inner Dia. | 10 mm < |
| Adaptable Bolts | M16 (Auto Wheel Nut) |
| Weight | 1.2 kg (Main Body) |
