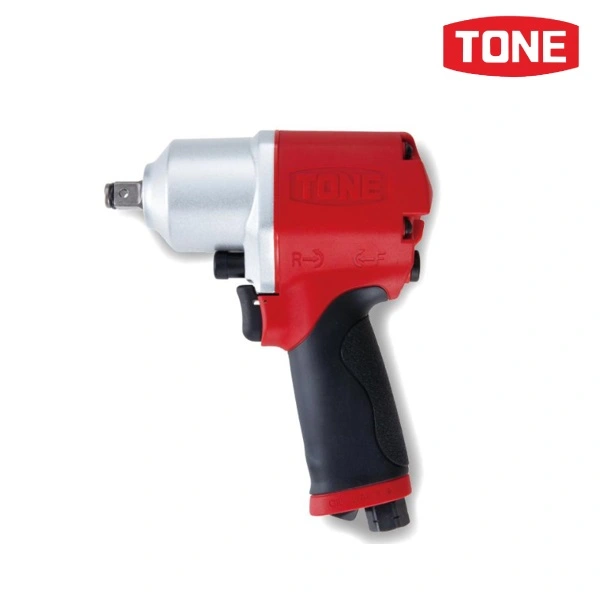

TONE – AI4161 AIR IMPACT WRENCH
Features
TONE – AI4161 AIR IMPACT WRENCH :

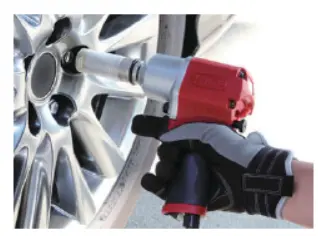

For car tire replacement and bolt/nut installation and removal.
A weight of 1.2 kg is achieved by using an aluminum alloy hammer case and a special reinforced resin body.
Positive (right) rotation 3 stages adjustable.
Switching of “left rotation large output type” rotation can be easier than another wrench.
staples output adjustment is also possible by the degree of pull of the switch.
The shape is easy to hold because we adopt a soft grip to soften vibration.
A rotary joint that prevents the twisting of the hose.
Output adjustment lever

Twin hammer

Example

OPTION
Impact socket(4NV- ○○)
Specification
| Rated Max. Torque | 510 Nㆍm (CW) , 570 Nㆍm (CCW) |
| No-load Speed | 10,000 min-1[CW], 11,000 min-1[CCW] |
| Air Pressure | 0.62 Mpa |
| Max Air Consumption | 915 ℓ/min (ntp) |
| 136 ℓ/min (op) | |
| Air intake | Rc1/4 (PT1/4) |
| Air Hose Inner Dia. | 10 mm < |
| Adaptable Bolts | M16 (Auto Wheel Nut) |
| Weight | 1.2 kg (Main Body) |
