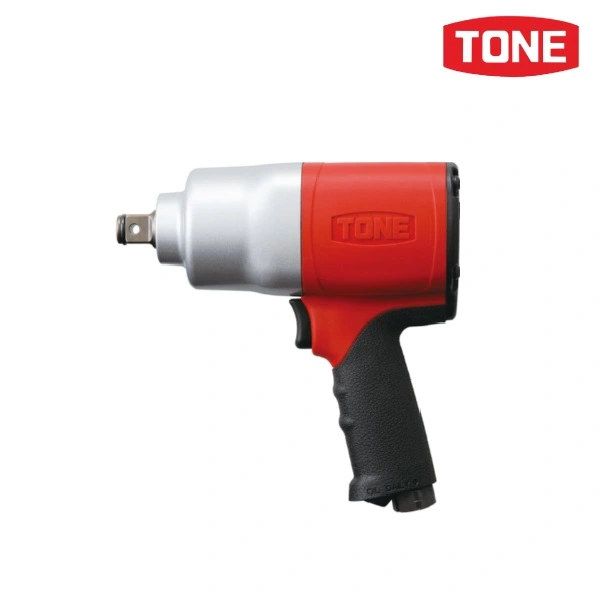

TONE – AI6300 AIR IMPACT ERENCH

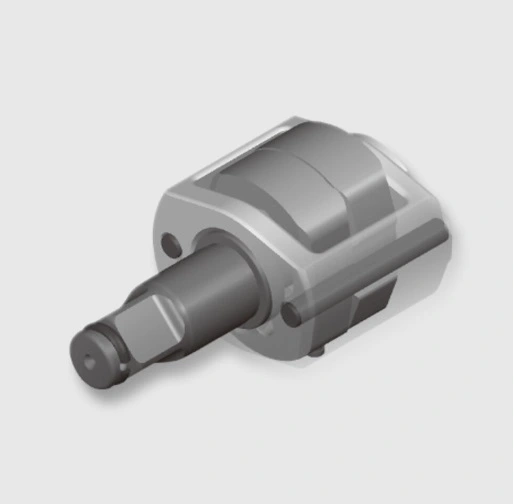

Ideal for changing tires on large buses and trucks, and for maintenance of heavy machinery and construction machinery. The magnesium alloy hammer case and special reinforced resin body have achieved a light weight of 3.2 kg.
For changing automobile tires and tightening and loosening nuts and bolts for general work.
| Rated Max. Torque Air Inlet | 1,600Nㆍm |
| No-load Speed | 5,750min-1[rpm] |
| Air Pressure | 0.62MPa |
| Max Air Consumption | 1,300 ℓ/min (ntp)
193 ℓ/min (op) |
| Air Inlet | Rc3/8 (PT3/8) |
| Air Hose Inner Dia. | 13mm < |
| Adaptable Bolts | M30 (Class 8.8) |
| Weight | 3.2kg (Main Body) |
accessories
- Plug: R3/8 (PT3/8), instruction manual
supplement
- Please use a compressor with an air tank. A compressor output of 0.75 kW (1 PS) or more is recommended. Maximum air consumption (ntp) indicates air consumption converted to standard conditions (0°C, 1 atmospheric pressure = 0.1 Mpa). The maximum air consumption (op) indicates the air consumption in actual operating conditions (20°C, 0.62 Mpa).
Notes
- The tightening torque is a reference value. The torque value changes depending on the conditions.
| Brand | TONE |
|---|
