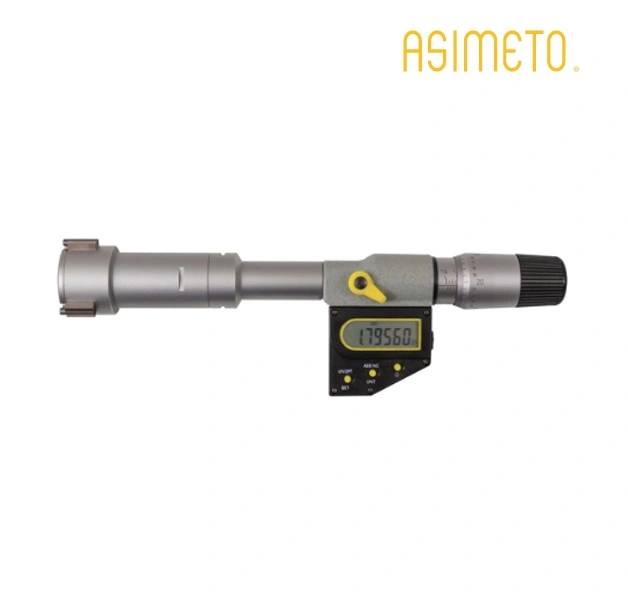

ASIMETO - SERIES 208 THREE - POINT DIGITAL INTERNAL MICROMETERS

ASIMETO – SERIES 208 THREE – POINT DIGITAL INTERNAL MICROMETERS

Digital models: .00005″ / 0.001mm
Mechanical models: .0002″ / 0.005mm

Categories: Dimension, Products

Description
Additional information

FEATURES

Resolution:
Digital models: .00005″ / 0.001mm
Mechanical models: .0002″ / 0.005mm
Digital models: Protection level IP65
Measuring contact points are designed to allow measurements near to the bottom of blind holes
Additional extensions can be added to increase the measuring depth
Measuring surfaces are carbide
Setting ring are not included with the set but are optional
Digital models support Bluetooth data transmission
Bluetooth data output: 901-01-5

Inch				Dimensions
Code No.	Range	Accuracy	Setting Ring	L	A	Extension Rod
208-24-1	.5-.65″	±.0001″	.65″	80mm	0.5mm	150mm
208-25-1	.65-.8″	±.0001″	.65″	80mm	0.5mm	150mm
208-26-1	.8-1″	±.0001″	1″	90mm	0.5mm	150mm
208-27-1	1-1.2″	±.0002″	1″	90mm	0.5mm	150mm
208-28-1	1.2-1.6″	±.0002″	1.6″	97mm	0.5mm	150mm
208-29-1	1.6-2″	±.0002″	1.6″	97mm	0.5mm	150mm
208-30-1	2-2.5″	±.0002″	2.5″	114mm	0.5mm	150mm
208-31-1	2.5-3″	±.0002″	2.5″	114mm	0.5mm	150mm
208-32-1	3-3.5″	±.0002″	3.5″	114mm	0.5mm	150mm
208-33-1	3.5-4″	±.0002″	3.5″	114mm	0.5mm	150mm

Brand	ASIMETO
