MarCator 1086 R-1-1

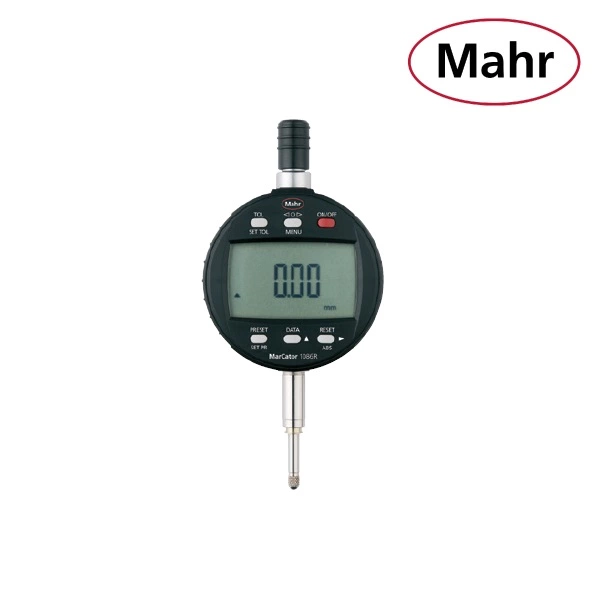

Mahr MarCator 1086 R Digital Indicator

FEATURES

High contrast LCD
Operating and display unit (bezel) can be rotated through 280°
Lifter protection cap on the measuring spindle
Mounting shank and measuring spindle are both made of hardened stainless steel
Immediate measurements due to the Reference System
Digit height : 11 mm
Data interface : Digimatic, Opto RS232C, USB
Energy supply : Battery life approx. 3 years
IP protection category : IP 42
Package contains : instruction manual, battery

SKU: TMA-154 Categories: Dimension, Products

Description
Additional information

Download: Mahr MarCator 1086 R Data Sheet

FUNCTIONS

ON/OFF
RESET (set display to zero)
mm/inch
Reversal of counting direction
PRESET (for entering a numerical value)
TOL (enter tolerance limit values)
<0> (tolerance GO / NO GO display mode)
ABS (display can be set to zero without losing reference to preset)
DATA (data transmission via connection cable)
Factor (adjustable)
LOCK (individual key lock)

TECHNICAL DATA

Order no.		4337130	4337131	4337132	4337133
Product type		1086 R
Measuring span	mm	12.5	25	50	100
Measuring span	inch	.5”	1”	2”	4”
Resolution	mm	0.01
Resolution	inch	.0005”
Error limit	mm	0.02
Error limit over 50 graduations	mm	0.02
Repeatability	mm	0.01
Measuring force	N	0.65 – 0.9	0.65 – 1.15	1.25 – 2.7	1.6 – 3.5
Standard		Factory standard
Lifting protection cap		•

Brand	Mahr
