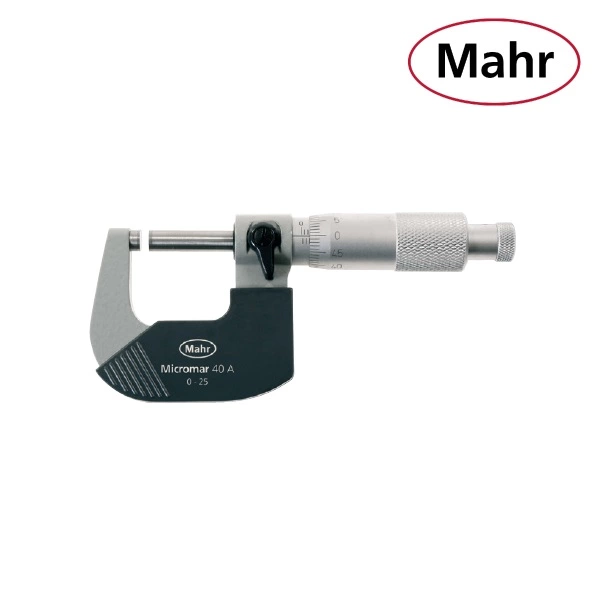

MAHR MICROMAR 40 A MICROMETER

MAHR MICROMAR 40 A MICROMETER

FEATURES

Operating and display units with satin chrome finish
Hard lacquered steel frame
Spindle and anvil made of hardened steel, carbide-tipped
Heat insulators
Rapid drive with integrated ratchet
Locking device
Package contains : setting standard (measuring range of 25– 50 mm), instruction manual, case

SKU: TMA-82 Categories: Dimension, Products

Description
Additional information

Download: Mahr Micromar 40 A Data Sheet

TECHNICAL DATA

Order no.	Product type	Measuring range	Graduation value	Error limit	Spindle thread pitch	Standard
		mm	mm	μm	mm
4134000	40 A	0 – 25	0.01	4	0.5	DIN 863– 1
4134001	40 A	25 – 50	0.01	4	0.5	DIN 863– 1
4134002	40 A	50 – 75	0.01	5	0.5	DIN 863– 1
4134003	40 A	75 – 100	0.01	5	0.5	DIN 863– 1
4134004	40 A	100 – 125	0.01	6	0.5	DIN 863– 1
4134005	40 A	125 – 150	0.01	6	0.5	DIN 863– 1
4134006	40 A	150 – 175	0.01	7	0.5	DIN 863– 1
4134007	40 A	175 – 200	0.01	7	0.5	DIN 863– 1

Brand	Mahr
