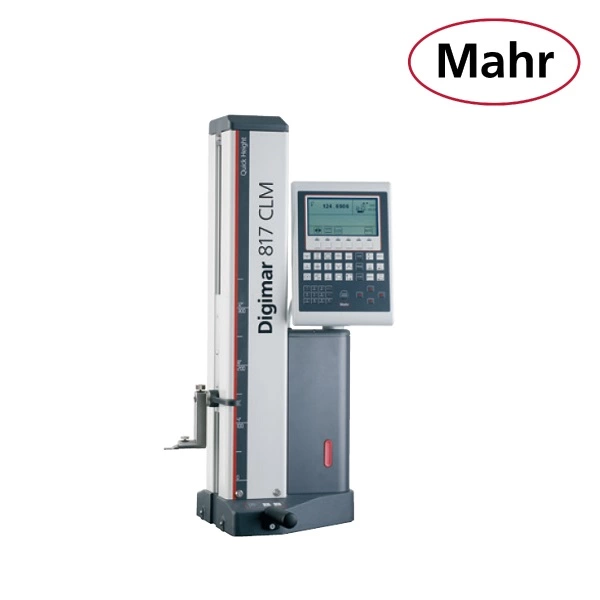

Mahr Digimar 817 CLM Height Measuring Instrument

FEATURES : Functions

  • Top or bottom contacting
  • Web width or distances between grooves, including center of web or groove
  • Bore or shaft diameter, including center of bore or shaft
  • Bore reversing point (up or down)
  • Shaft reversing point (up or down)
  • Calculating distances or symmetry
  • Dynamic measuring functions
  • Perpendicularity measurement
  • Straightness measurement
  • Measurement in 2D mode
  • Measuring programs
  • Statistical evaluation
  • Measuring data processing
  • Large and clearly defined function keys
  • Easy to read background lit graphic LCD display
  • Operator guidance with self-explanatory icons / pictograms
  • Operator prompts and menus are available in several languages
  • Possible to set additional zero points on a work piece
  • Additional measurement instruments with Opto RS232 interface can be connected
  • Secure the future due to software update potential
  • Automatic Stand-by switch mode
  • Selectable Auto-off function, without loss of measured values
  • Excellent accuracy and reliabilty due to the optical incremental measurement system with the double reader head
  • Dynamic probing system enabling high repeatability
  • Air bearings system for light and smooth movement
  • Precise measuring head on stainless steel guideways
  • Motorized measuring carriage simplifies measurement runs
  • Probe constant remains after the instrument is switched off
  • Integrated rechargeable battery with a long operating time span for power source independent measurement
  • Temperature compensation with an integrated temperature sensor
  • Software : MarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS232 interface)
  • Package contains : height measuring instrument including operating and display unit, carrier 817h1, probe K6/51, setting block 817 eb, instruction manual, power source, USB cable, protection cover, calibration certificate
