570-244-Mitutoyo-1

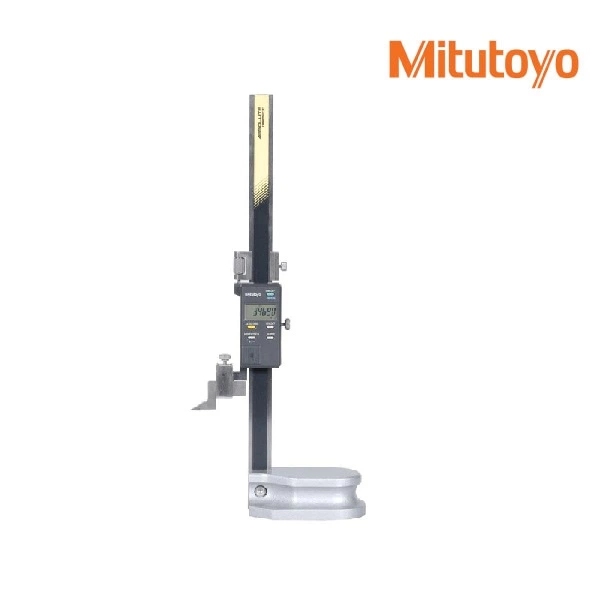

Mitutoyo Series 570 ABSOLUTE Digimatic Height Gage

with ABSOLUTE Linear Encoder

FEATURES

Built-in ABSOLUTE linear encoder This encoder eliminates the necessity of setting the reference point at every power-on. It has improved reliability because no over-speed error will occur.
Fine-adjustment carriage for smooth movement.
Carbide-tipped scriber is provided.
With SPC data output.

SKU: TMI-187 Categories: Dimension, Products

Description
Additional information

Download: Mitutoyo Series 570 Data Sheet

SPECIFICATIONS

Metric

Range	Order No.	Accuracy	Resolution	Mass (kg)
0 – 200mm	570-227	±0.03mm	0.01mm	1.4
0 – 1000mm	570-230	±0.07mm	0.01mm	16.8

Inch/Metric

Range	Order No.	Accuracy	Resolution	Mass(kg)
0 – 8″ / 0 – 200mm	570-244	±.001″	.0005” / 0.01mm	1.4
0 – 40″ / 0 – 1000mm	570-248	±.003″	.0005” / 0.01mm	16.8

Brand	MITUTOYO
