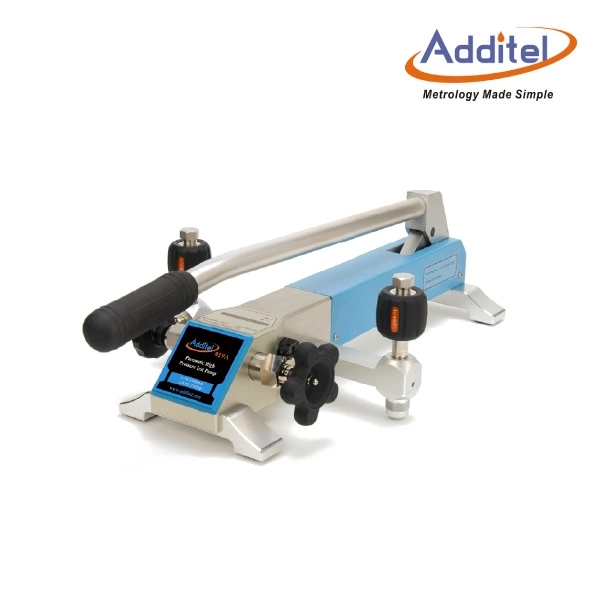

Additel 919A High Pressure Test Pump

FEATURES

High Efficiency
Generate 2,000 psi (140 bar) in 30 seconds.
Adjustment Resolution
0.001 psi (10 Pa , 0.1 mbar). High-quality screw press for fine pressure adjustment.
Great Stability
A specially designed shut-off valve makes the pressure as stable as possible during calibration.
Durable and Minimal Maintenance
Built-in gas-liquid isolator protects the pump from moisture and dirt. The residual liquid in the pump introduced from devices under test will be collected and then pushed out and collected during pressure release. Anticorrosive and wear resistant material are used to improve the reliability further.
Hand-tight Quick Connectors
Allows easy connecting and disconnecting to the test pump without the need for PTFE tape or wrenches.

SKU: 919A Categories: Pressure & Vacuum, Products

Specifications

Media	Air
Generated Pressure Range	95% vacuum to 2000 psi (140 bar) positive pressure
Adjustment Resolution	0.001 psi (10 Pa, 0.1 mbar).
Material	Ram/adapters: SS
	Body: SS/aluminum
	Seals: Buna-N
Connection	Hand-tight connectors for both test gauge and reference gauge.
	Test Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female
	Reference Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female
Dimensions	Height: 7.00″ (178 mm)
Dimensions	Base: 21.26″ (540 mm) x 10.63″ (270 mm)
Weight	14.3 lb (6.5 kg).
Warranty	1 year

Brand	Additel
