TONE – AGR01 AIR GRINDER

It is a compact grinder that is small, lightweight and excellent in workability.
Comes with a collet chuck with a shaft diameter of 3 mm and 6 mm. Equipped with rotation speed adjustment function.
For all metal polishing and deburring work.

output angle	Collet chuck
Tip shape	Collet chuck
Working air pressure (Mpa)	0.62
Joint thread diameter (mm)	Rc1/4 (PT1/4)
Air hose inner diameter (mm)	More than 10
Material	Multiple
Single product mass (g)	550
Single product dimensions (mm) w	164
Single product dimensions (mm)d	42
Single product dimensions (mm) h	68
Quantity	1
Small box quantity	12

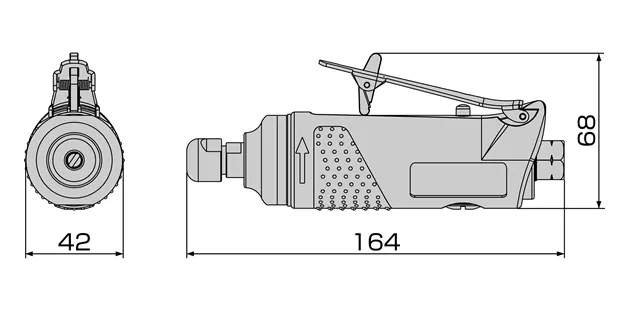

Dimensional drawing

accessories

Plug: R1/4 (PT1/4), Spanner for whetstone replacement: 2, Collet 3mm: 1, Collet 6mm: 1

supplement

The product does not come with a tip grinding tool. Please purchase a tip grinding tool that meets the standard. A compressor output of 3 kW (4 PS) or more is recommended. Maximum air consumption (ntp) indicates air consumption converted to standard conditions (0°C, 1 atmospheric pressure = 0.1 Mpa). The maximum air consumption (op) indicates the air consumption in actual operating conditions (20°C, 0.62 Mpa).

Brand	TONE
