FEATURES
- Graduation: .001″ / 0.01mm
- Ratchet stop
- For measuring the groove diameter of shafts, keyways, and other hard to reach portions
- Non-rotating spindle
- Carbide tipped measuring faces
- Grey painted steel frame

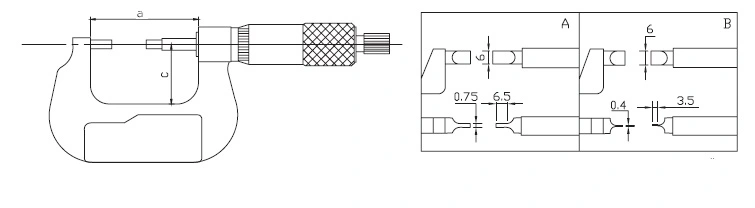

| Anvil Type A | Anvil Type B | Inch | Dimensions | ||
| Code No. | Code No. | Range | Accuracy | a | C |
| 112-01-1 | 112-01-3 | 0-1″ | ±.0001″ | 57 mm | 32 mm |
| 112-02-1 | 112-02-3 | 1-2″ | ±.0002″ | 82 mm | 44.5 mm |
| 112-03-1 | 112-03-3 | 2-3″ | ±.0002″ | 107 mm | 57 mm |
| 112-04-1 | 112-04-3 | 3-4″ | ±.0002″ | 132.6 mm | 69.5 mm |
| 112-05-1 | 112-05-3 | 4-5″ | ±.0002″ | 158 mm | 82 mm |
| 112-06-1 | 112-06-3 | 5-6″ | ±.0002″ | 183.4 mm | 94.5 mm |
| Anvil Type A | Anvil Type B | Metric | Dimensions | ||
| Code No. | Code No. | Range | Accuracy | a | C |
| 112-01-0 | 112-01-2 | 0-25mm | 0.004mm | 57 mm | 32 mm |
| 112-02-0 | 112-02-2 | 25-50mm | 0.004mm | 82 mm | 44.5 mm |
| 112-03-0 | 112-03-2 | 50-75mm | 0.005mm | 107 mm | 57 mm |
| 112-04-0 | 112-04-2 | 75-100mm | 0.005mm | 132.6 mm | 69.5 mm |
| 112-05-0 | 112-05-2 | 100-125mm | 0.006mm | 158 mm | 82 mm |
| 112-06-0 | 112-06-2 | 125-150mm | 0.006mm | 183.4 mm | 94.5 mm |
| ยี่ห้อ | ASIMETO |
|---|
