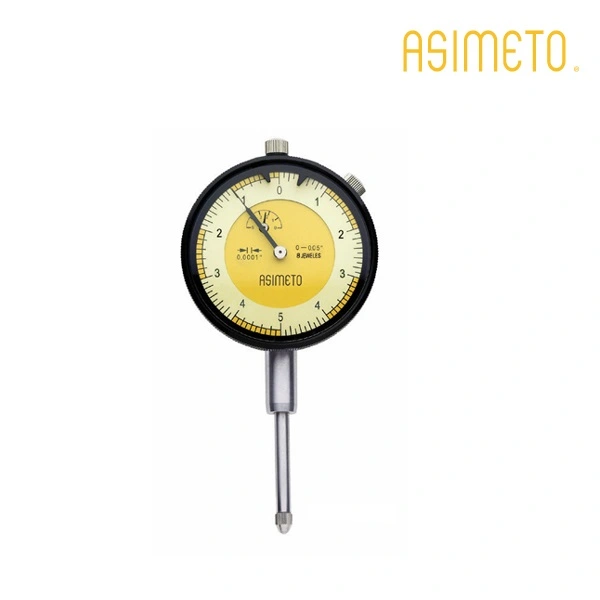

Download : ASIMETO – SERIES 402 AGD 2 DIAL INDICATORS
FEATURES
- Graduation: Inch: .0001″
- Easy to read dial face
- Jeweled
- Internal tolerance marker
- Flat back (attached) and lug back supplied
- With counter pointer
| Code No. | Range | Graduation | Range/Rev. | Dial Reading | Accuracy |
| 402-01-1 | 0-.05″ | .0001″ | .01″ | 0-100 | ±.0001″ |
| 402-01-3 | 0-.05″ | .0001″ | .01″ | 0-50-0 | ±.0001″ |
| 402-01-5 | 0-.05″ | .0001″ | .01″ | 0-5-0 | ±.0001″ |

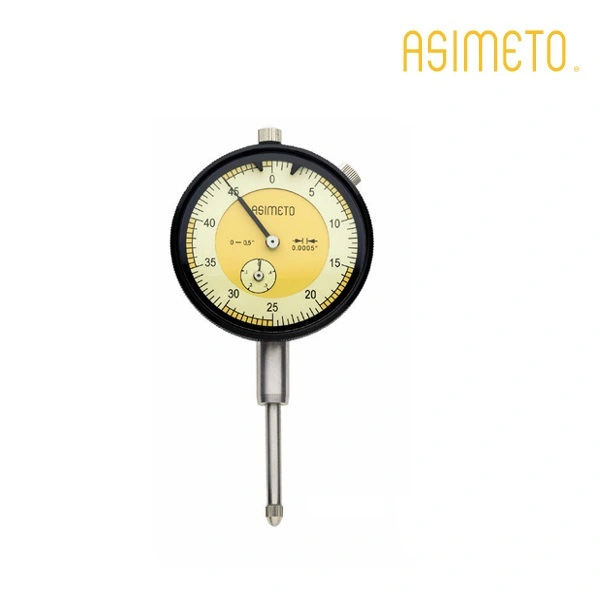

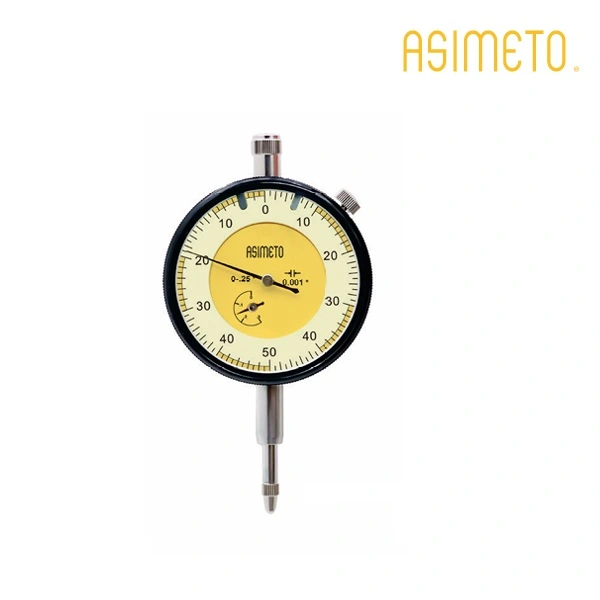

FEATURES
- Graduation: Inch: .001″ / .0005″
- Easy to read dial face
- Internal tolerance marker
- Flat back (attached) and lug back supplied
- With counter pointer
| Code No. | Range | Graduation | Range/Rev. | Dial Reading | Accuracy | A | B |
| 402-06-1 | 0-25″ | .001″ | .1″ | 0-100 | ±002″ | 2.54″ | 0.71″ |
| 402-06-3 | 0-25″ | .001″ | .1″ | 0-50-0 | ±002″ | 2.54″ | 0.71″ |
| 402-06-5 | 0-25″ | .0005″ | .05″ | 0-25-0 | ±0015″ | 2.54″ | 0.71″ |
| Code No. | Range | Graduation | Range/Rev. | Dial Reading | Accuracy | A | B |
| 402-12-1 | 0-50″ | .001″ | .1″ | 0-100 | ±002″ | 2.74″ | 0.91″ |
| 402-12-3 | 0-50″ | .001″ | .1″ | 0-50-0 | ±002″ | 2.74″ | 0.91″ |
| 402-12-5 | 0-50″ | .0005″ | .05″ | 0-50 | ±002″ | 2.74″ | 0.91″ |
| 402-26-1 | 0-1″ | .001″ | .1″ | 0-100 | ±002″ | 3.21″ | 1.38″ |
| 402-26-3 | 0-1″ | .001″ | .1″ | 0-50-0 | ±002″ | 3.21″ | 1.38″ |
| 402-26-5 | 0-1″ | .0005″ | .05″ | 0-50 | ±002″ | 3.21″ | 1.38″ |
| ยี่ห้อ | ASIMETO |
|---|
