CAS EXI-200AD (เครื่องชั่งกันระเบิด)
EXI Series is an explosion-proof indicator that is suitable for explosion-proof platform scale,
weighing explosive substances, checker scale and packer scale.

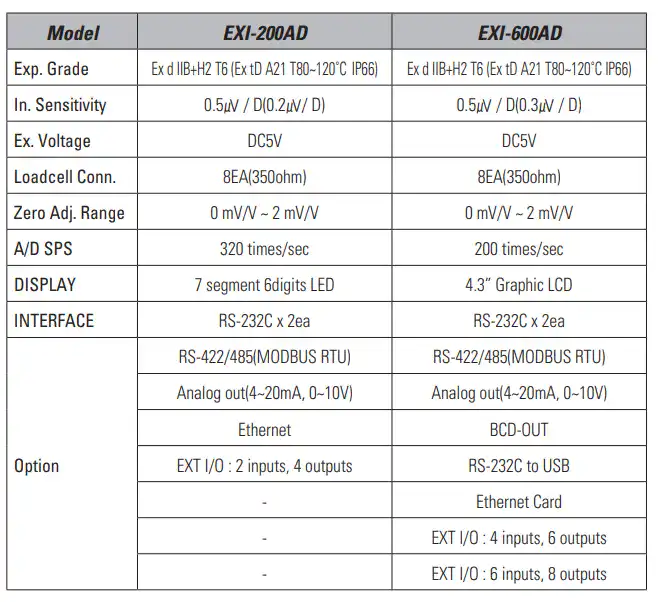

Specifications
| Model | EXI-200AD | EXI-600AD |
| Exp. Grade | Ex d IIB+H2 T6 (Ex tD A21 T80-120°C IP66) | Ex d IIB+H2 T6 (Ex tD A21 T80-120°C IP66) |
| In. Sensitivity | 0.5V/D(0.2µV/D) | 0.5V/D(0.3V/D) |
| Ex. Voltage | DC5V | DC5V |
| Loadcell Conn. | 8EA(350ohm) | 8EA(350ohm) |
| Zero Adj. Range | 0 mV/V-2 mV/V | 0 mV/V-2 mV/V |
| A/D SPS | 320 times/sec | 200 times/sec |
| DISPLAY | 7 segment 6digits LED | 4.3″ Graphic LCD |
| INTERFACE | RS-232C x 2ea | RS-232C x 2ea |
| Option | RS-422/485(MODBUS RTU) | RS-422/485(MODBUS RTU) |
| Analog out(4-20mA, 0-10V) | Analog out(4-20mA, 0-10V) | |
| Ethernet | BCD-OUT | |
| EXT 1/0: 2 inputs, 4 outputs | RS-232C to USB | |
| – | Ethernet Card | |
| – | EXT I/O: 4 inputs, 6 outputs | |
| – | EXT I/O: 6 inputs, 8 outputs |
Feature
Explosion proof
- Explosion-proof, Dust explosion protection
- Water proof(IP66)

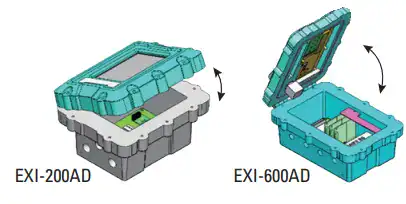

Front opening structure
- Easy installation & repairing
Fast and accurate weighing performance
- Sample rate(A/D conversion speed) : 5~320times/sec
- Resolution : 1/10,000

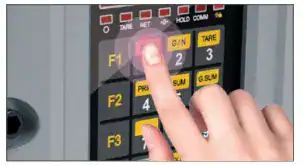

Touch keypad
- Constant voltage touch method

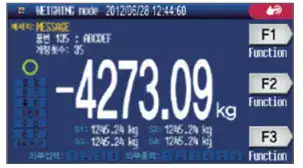

User-friendly Graphic interface(EXI-600AD)
- Use 4.3″ Full Graphic TFT LCD
- Display many information (message, data)
Variety of interfaces
- RS-485(Stream mode, Command Mode, MODBUS RTU)
- External 1/0
– 2 Inputs / 4 outputs(EXI-200AD)
– 4 Inputs / 6 outputs(EXI-600AD)
– 6 Inputs / 8 outputs(EXI-600AD)
- Analog output(0~20mA, 0~24mA, 4~20mA, 0~5V , 0~10V, +5V, +10V)
- BCD output(EXI-600AD)
- Ethernet

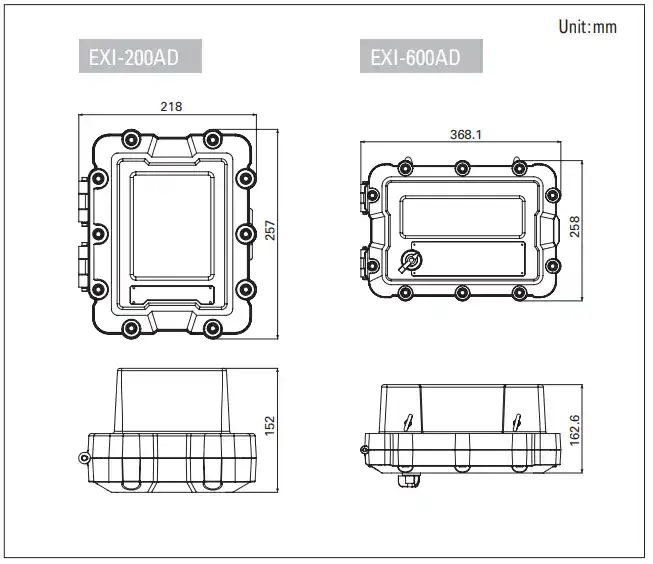

DIMENSION
| ยี่ห้อ | CAS |
|---|
