TONE - AI3120 AIR IMPACT WRENCH
TONE - AI3120 AIR IMPACT WRENCH
TONE - AI3120 AIR IMPACT WRENCH
Pattern-Tone 1
หน้าหลัก / สินค้า / Torque & Force

TONE – AI3120 AIR IMPACT WRENCH

  • STUBBY AIR RATCHET WRENCH, TONE - AR2100S STUBBY AIR RATCHET WRENCH
  • TONE - AR3100S STUBBY AIR RATCHET WRENCH

  • Rated Max. Torque 350 Nㆍm
  • Weight 1.1 Kg
หมวดหมู่: Torque & Force, สินค้า
  • STUBBY AIR RATCHET WRENCH, TONE - AR2100S STUBBY AIR RATCHET WRENCH
  • TONE - AR3100S STUBBY AIR RATCHET WRENCH
หมวดหมู่
  • สินค้า
    • Promotion
    • Pressure & Vacuum
    • Dimension
    • Temperature & Humidity
    • Torque & Force
    • Electrical
    • Mass & Balance
    • Glassware & Chemical
    • Others
  • บริการ
    • Pressure & Vacuum
    • Dimension
    • Temperature & Humidity
    • Torque & Force
    • Electrical
    • Mass & Balance
    • Glassware & Chemical
    • Medical
    • Flow
  • อบรม
  • คำอธิบาย
  • ข้อมูลเพิ่มเติม

TONE – AI3120 AIR IMPACT WRENCH An pneumatic impact wrench ideal for replacement of car tires and attachment/detachment of bolts/nuts.

Features

TONE – AI3120 AIR IMPACT WRENCH :

  • Realizes light weight of 1.1 kg with magnesium alloy hammer case and special strengthened resin body.

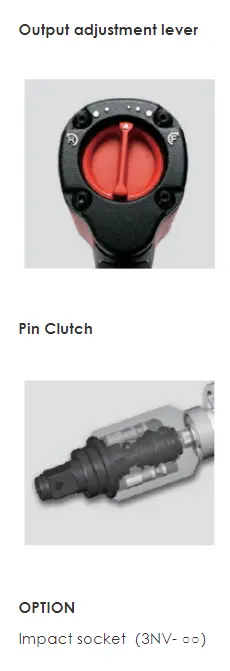

  • Equipped with lightweight and powerful pin clutch.
  • Equipped with an output adjustment lever for 3-step forward rotation and 2-step reverse rotation.
  •  Allows  step less output adjustment by pulling the switch.
  • It uses an easy-to-grip soft grip that mitigates vibration.
  • Rotating joint that prevents the hose from twisting.

Applications

  • Ideal for maintenance of automobiles, motorcycles, bicycles, and assembly and maintenance of machinery.

Applications, TONE - AI3120 AIR IMPACT WRENCH
Specification

Rated Max. Torque  350 Nㆍm
No-load Speed 11,000 min-1[rpm]
Air Pressure 0.62 MPa

Max Air Consumption
720 ℓ/min (ntp)
107 ℓ/min (op)
Air intake Rc1/4 (PT1/4)
Air Hose Inner Dia.    10 mm <
Adaptable Bolts  M12  (Auto Wheel Nut)
Weight 1.1 kg (Main Body)







สินค้า TONE

ขอใบเสนอราคา     ติดต่อเรา

ยี่ห้อ

TONE
