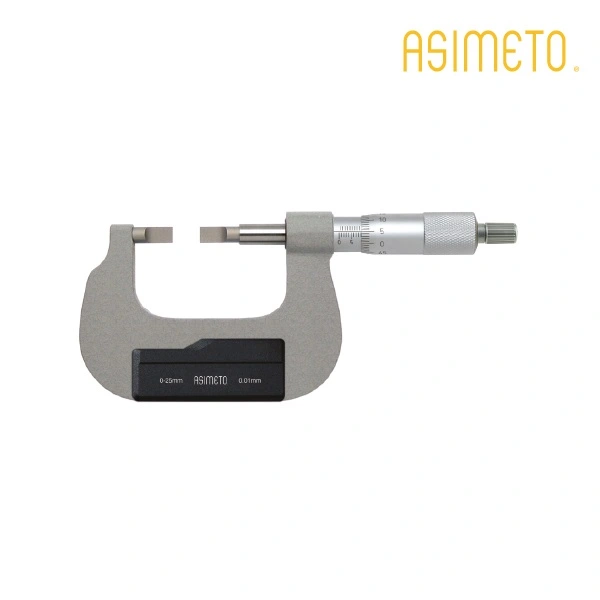

ASIMETO - SERIES 112 BLADE MICROMETERE

ASIMETO – SERIES 112 BLADE MICROMETERE

Categories: Dimension, Products

Description
Additional information

FEATURES

Graduation: .001″ / 0.01mm
Ratchet stop
For measuring the groove diameter of shafts, keyways, and other hard to reach portions
Non-rotating spindle
Carbide tipped measuring faces
Grey painted steel frame

Anvil Type A	Anvil Type B	Inch	Dimensions
Code No.	Code No.	Range	Accuracy	a	C
112-01-1	112-01-3	0-1″	±.0001″	57 mm	32 mm
112-02-1	112-02-3	1-2″	±.0002″	82 mm	44.5 mm
112-03-1	112-03-3	2-3″	±.0002″	107 mm	57 mm
112-04-1	112-04-3	3-4″	±.0002″	132.6 mm	69.5 mm
112-05-1	112-05-3	4-5″	±.0002″	158 mm	82 mm
112-06-1	112-06-3	5-6″	±.0002″	183.4 mm	94.5 mm

Anvil Type A	Anvil Type B	Metric	Dimensions
Code No.	Code No.	Range	Accuracy	a	C
112-01-0	112-01-2	0-25mm	0.004mm	57 mm	32 mm
112-02-0	112-02-2	25-50mm	0.004mm	82 mm	44.5 mm
112-03-0	112-03-2	50-75mm	0.005mm	107 mm	57 mm
112-04-0	112-04-2	75-100mm	0.005mm	132.6 mm	69.5 mm
112-05-0	112-05-2	100-125mm	0.006mm	158 mm	82 mm
112-06-0	112-06-2	125-150mm	0.006mm	183.4 mm	94.5 mm

Brand	ASIMETO
