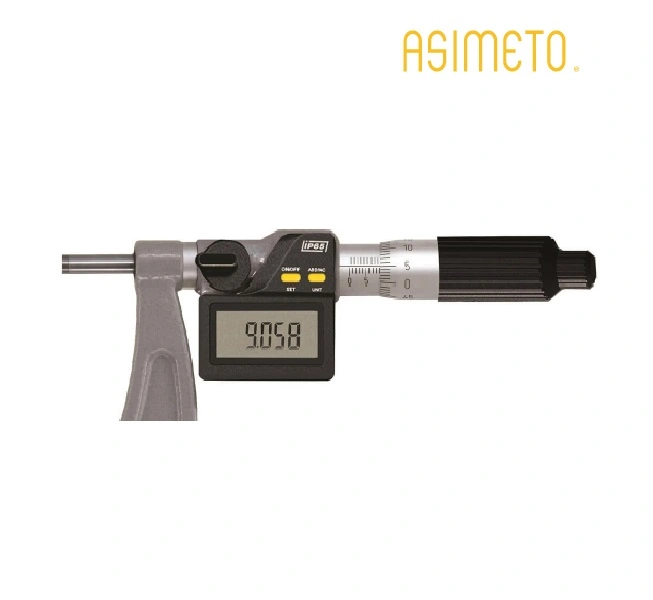

FEATURES
- Resolution:
Digital reading: .00005″ / 0.001mm
Flatness: .00004″ / 1µm - Ratchet stop
- Interchangeable anvils provide wider measuring ranges
- Carbide tipped measuring faces
- Grey painted steel frame for models up to 12″ / 300mm
- Grey welded pipe frame for models over 12″ / 300mm models
- Inch/Metric conversion
- Read the actual absolute measuring position after switching on the display
- Automatic On/Off to maximize battery life
- Absolute or incremental measuring modes
- Protection level IP65
- Support Bluetooth data transmission Bluetooth data output: 901-01-5
| Range | Accuracy | Anvils | Standards | Code No. |
| 0-150mm/ 0 -6″ | ± 0.003mm | 6 pcs | 5 pcs | 115-06-0 |
| 150-300mm / 6-12″ | ± 0.005mm | 6 pcs | 6 pcs | 115-12-0 |
| 0-100mm / 0-4″ | ± 0.003mm | 4 pcs | 3 pcs | 115-04-6 |
| 100-200mm / 4-8″ | ± 0.004mm | 4 pcs | 4 pcs | 115-08-6 |
| 200-300mm / 8-12″ | ± 0.005mm | 4 pcs | 4 pcs | 115-12-6 |
| 300-400mm / 12-16″ | ± 0.006mm | 4 pcs | 2 pcs | 115-16-0 |
| 400-500mm / 16-20″ | ± 0.007mm | 4 pcs | 2 pcs | 115-20-0 |
| 50-600mm / 20-24″ | ± 0.007mm | 4 pcs | 2 pcs | 115-24-0 |
| 600-700mm / 24-28″ | ± 0.008mm | 4 pcs | 2 pcs | 115-28-0 |
| 700-800mm / 28-32 | ± 0.009mm | 4 pcs | 2 pcs | 115-32-0 |
| 800-900mm / 32-36″ | ± 0.010mm | 4 pcs | 2 pcs | 115-36-0 |
| 900-1000mm / 36-40″ | ± 0.010mm | 4 pcs | 2 pcs | 115-40-0 |
| Brand | ASIMETO |
|---|
