ASIMETO – SERIES 131 SINGLE POINT MICROMETERS

Categories: Dimension, Products

Description
Additional information

FEATURES

Graduation: 0001″ / 0.01mm
Ratchet stop
For measuring the height of crimp contacts
Carbide tipped measuring faces
Grey painted steel frame

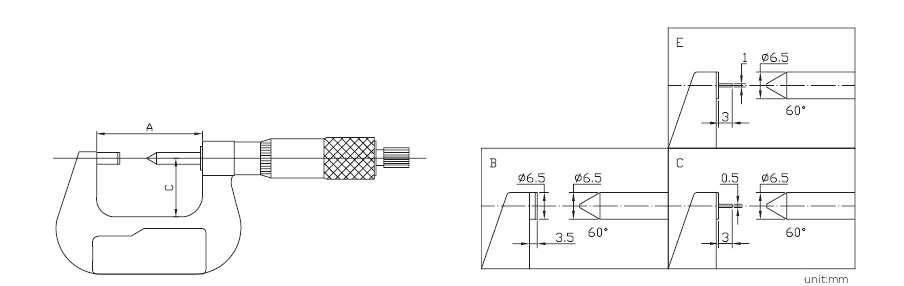

Anvil Type B	Anvil Type C	Anvil Type E	Inch		Dimensions
Code No.	Code No.	Code No.	Range	Accuracy	A	C
131-01-1	131-01-3	131-01-5	0-1″	±.0001″	34.4mm	24mm
131-02-1	–	–	1-2″	±.0002″	59.4mm	32mm
131-03-1	–	–	2-3″	±.0002″	84.8mm	44.5mm
131-04-1	–	–	3-4″	±.0002″	110.2mm	57mm

Anvil Type B	Anvil Type C	Anvil Type E	Metric		Dimensions
Code No.	Code No.	Code No.	Range	Accuracy	A	C
131-01-0	131-01-2	131-01-4	O-25mm	0.004mm	34.4mm	24mm
131-02-0	–	–	25-50mm	0.004mm	59.4mm	32mm
131-03-0	–	–	5O-75mm	0.005mm	84.8mm	44.5mm
131-04-0	–	–	75-1OOmm	0.005mm	110.2mm	57mm

Brand	ASIMETO
