HEXAGON Captura 3.2.2/4.3.2/5.4.2

Fast-measuring, easy-to-use optical coordinate measuring machines

A new vision for non-contact measurement

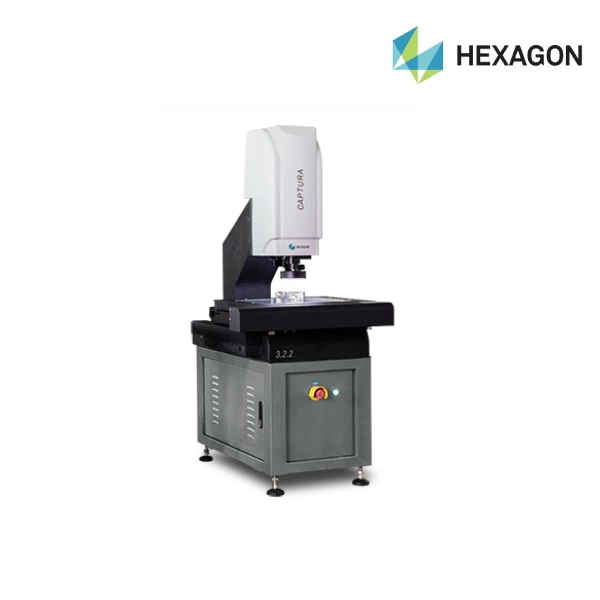

Captura is an optical coordinate measuring machine (CMM) designed to offer excellent price to performance ratio for the entry-level market. The Captura range supports multisensor measurements with vision sensors, laser sensors and confocal sensors. The standard machine is supplied with the vision sensor and its functionality can be extended with additional sensors. Captura’s dynamic machine concept offers high positioning accuracy and is designed for fast measuring point acquisition and high-performance data capture. The CMM runs on Metus measurement software, a Hexagon-developed software providing a user-friendly interface and flexible operation modes.

FEATURES

  • High-precision granite construction to ensure long-term stability
  • Three-axis full servo closed loop control system
  • Grinding grade screw drive, accurate positioning, high motion accuracy
  • High resolution 1/1.8-inch CCD colour camera (H 1920 x V 1440 pixels) with Gigabit Ethernet interface
  • Customised CNC zoom with 6.5x magnification and 10 steps
  • Magnification: 35x – 205x (24-inch screen)
  • Navigator system
  • Resolution of the scales: 0.4 μm
  • Illumination for vision sensor
  • Parallel LED backlight
  • Six-ring and eight-segment LED ring light (white LEDs)
  • Coaxial LED top light (optional)
  • Joystick

OPTIONS

  • Laser point and laser line sensors
  • Chromatic confocal sensors
