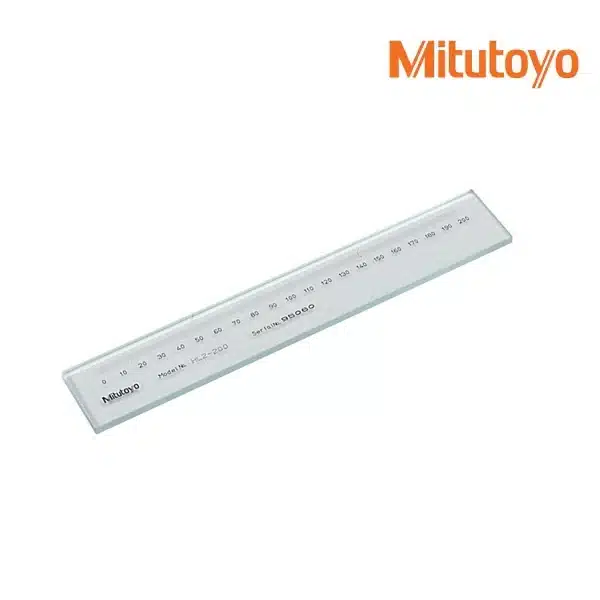

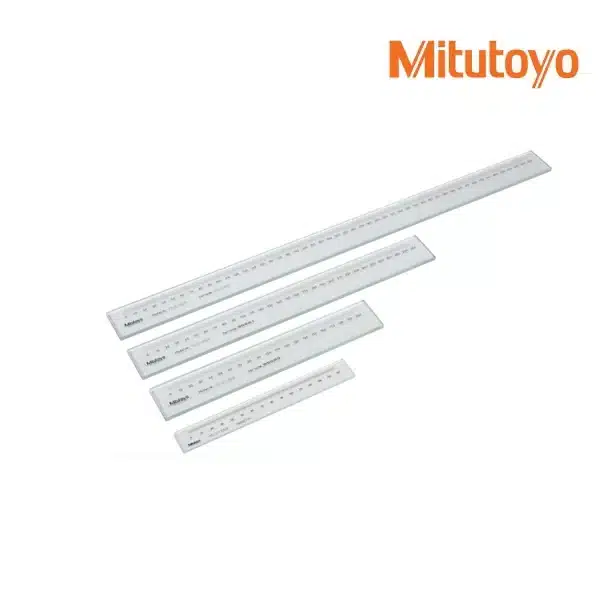

Working Standard Scales

SERIES 182

• High-precision glass scales manufactured under Mitutoyo’s leading-edge Linear Scale production technology. They are available in various types and sizes to suit to your application.
• Ideal for checking magnification accuracy of profile projectors and microscopes, and the table feeding accuracy of measuring equipment.

SPECIFICATIONS

Metric

Code No.	Range (mm)	Graduation (mm)	Length (mm)	Inspection pitch (mm)	Graduation thickness (μm)	Mass (kg)
182-511-10	50	0.1	75	5	20	0.23
182-512-10	100		125	10		0.24
182-513-10	150		175			0.25
182-514-10	200		225			0.26
182-521-10	100	0.5	130		50	0.27
182-522-10	200		230	20		0.32
182-523-10	300		330			0.57
182-524-10	400		430			0.71
182-525-10	500		530			0.86
182-531-10	250	1	280	25	100	0.55
182-532-10	500		530			1.22
182-533-10	750		780			0.23
182-534-10	1000		1030			1.54

Material: Soda-lime glass
• Thermal expansion coefficient: 8.5×10-6/K
• Accuracy (at 20 °C): (1.5 + 2L/1000) µm, L=Measured length (mm)
Note: An inspection certificate produced by a standard scale automatic calibration system is supplied as standard
