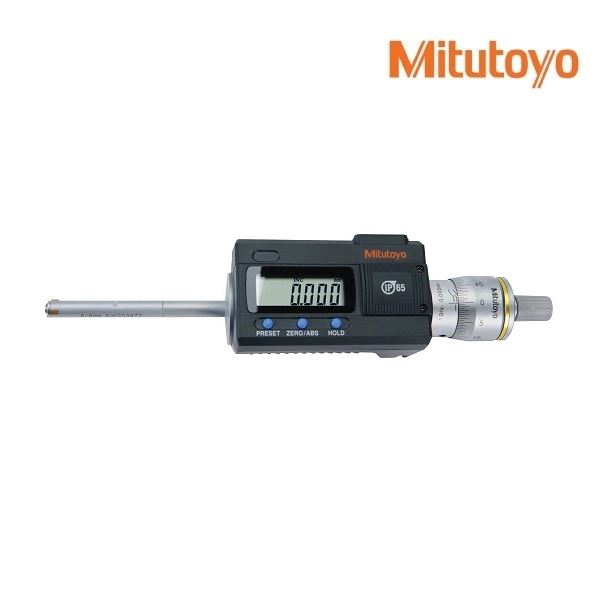

Mitutoyo Series 468 Digimatic Holtest
Three-Point Internal Micrometers
FEATURES
- TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole (up to 100mm / 4”models).
- Large LCD readout.
- Functions available: Presetting, Zero/ABS, Auto power On/Off, Data hold, Data output, Error alarm, Battery replacement alarm.
- With Ratchet Stop for constant force.
- Measure deep holes by attaching an extension rod (optional).
- Setting rings for origin point setting are optional.
- Supplied in fitted plastic case up to 100mm / 4”. Over 100mm / 4” supplied in wooden case.
Download: Mitutoyo Series 468 Data Sheet
SPECIFICATIONS
Metric (with TiN-coated contact points)
| Range | Accuracy | Order Code | |
| Individual | Main Body Assembly | ||
| 6-8 | ±2µm | 468-161 | 04AZB106 |
| 8-10 | 468-162 | ||
| 10-12 | 468-163 | ||
| 12-16 | 468-164 | 04AZB107 | |
| 16-20 | 468-165 | ||
| 20-25 | ±3µm | 468-166 | 04AZB108 |
| 25-30 | 468-167 | ||
| 30-40 | 468-168 | ||
| 40-50 | 468-169 | ||
| 50-63 | 468-170 | 04AZB109 | |
| 62-75 | 468-171 | ||
| 75-88 | 468-172 | ||
| 87-100 | 468-173 | ||
| 100-125 | ±5µm | 468-174 | 04AZB110 |
| 125-150 | 468-175 | ||
| 150-175 | 468-176 | ||
| 175-200 | 468-177 | ||
| 200-225 | 468-178 | ||
| 225-250 | 468-179 | ||
| 250-275 | 468-180 | ||
| 275-300 | 468-181 | ||
Inch/Metric (with TiN-coated contact points)
| Range | Accuracy | Order Code | |
| Individual | Main Body Assembly | ||
| .275-.35″/6.925-8.89mm | ±.0001″ | 468-261 | 04AZB111 |
| .35-.425″/8.89-10.795mm | 468-262 | ||
| .425-.5″/10.795-12.7mm | 468-263 | ||
| .5-.65″/12.7-16.51mm | 468-264 | 04AZB112 | |
| .65-.8″/16.51-20.32mm | 468-265 | ||
| .8-1″/20.32-25.4mm | ±.00015″ | 468-266 | 04AZB113 |
| 1-1.2″/25.4-30.48mm | 468-267 | ||
| 1.2-1.6″/30.48-40.64mm | 468-268 | ||
| 1.6-2″/40.64-50.8mm | 468-269 | ||
| 2-2.5″/50.8-63.5mm | 468-270 | 04AZB114 | |
| 2.5-3″/63.5-76.2mm | 468-271 | ||
| 3-3.5″/76.2-88.9mm | 468-272 | ||
| 3.5-4″/88.9-101.6mm | 468-273 | ||
| 4-5″/101.6-127mm | ±.00025″ | 468-274 | 04AZB115 |
| 5-6″/127-152.4mm | 468-275 | ||
| 6-7″/152.4-177.8mm | 468-276 | ||
| 7-8″/177.8-203.2mm | 468-277 | ||
| 8-9″/203.2-228.6mm | 468-278 | ||
| 9-10″/228.6-254mm | 468-279 | ||
| 10-11″/254-279.4mm | 468-280 | ||
| 11-12″/279.4-304.8mm | 468-281 | ||
Complete Unit Set
Each set includes complete gages (display units and measuring heads for each size).
Metric (with TiN-coated contact points)
| Range | Order No. | Individual range | Setting rings included | Remarks |
| 6 – 12mm | 468-981 | 6-8, 8-10, 10-12mm | ø8mm, ø10mm | — |
| 12 – 25mm | 468-982 | 12-16, 16-20, 20-25mm | ø16mm, ø20mm | — |
| 25 – 50mm | 468-983 | 25-30, 30-40, 40-50mm | ø30mm, ø40mm | — |
| 50 – 75mm | 468-984 | 50-63, 62-75mm | ø62mm | — |
| 75 – 100mm | 468-985 | 75-88, 87-100mm | ø87mm | — |
Inch/Metric (with TiN-coated contact points)
| Range | Order No. | Individual range | Setting rings included | Remarks |
| .275 – .5″ / 6.925 – 12.7mm | 468-986 | .275-.35″, .35-.425″, .425-.5″ | .35″ DIA., .425″ DIA. | — |
| .5 – 1″ / 12.7 – 25.4mm | 468-987 | .5-.65″, .65-.8″, .8-1″ | .65″ DIA., .8″ DIA. | — |
| 1 – 2″ / 25.4 – 50.8mm | 468-988 | 1-1.2″, 1.2-1.6″, 1.6-2″ | 1.2″ DIA., 1.6″ DIA. | — |
| 2 – 3″ / 50.8 – 76.2mm | 468-989 | 2-2.5″, 2.5-3″ | 2.5″ DIA. | — |
| 3 – 4″ / 76.2 – 101.6mm | 468-990 | 3-3.5″, 3.5-4″ | 3.5″ DIA. | — |
Interchangeable Head Set
Each set includes one display unit with interchangeable measuring heads of the sizes specified.
Metric (with TiN-coated contact points)
| Range | Order No. | Individual range | Setting rings included | Remarks |
| 6 – 12mm | 468-971 | 6-8, 8-10, 10-12mm | ø8mm, ø10mm | with extension rod |
| 12 – 20mm | 468-972 | 12-16, 16-20mm | ø16mm. | with extension rod |
| 20 – 50mm | 468-973 | 20-25, 25-30, 30-40, 40-50mm | ø25mm, ø40mm | with extension rod |
| 50 – 100mm | 468-974 | 50-63, 62-75, 75-88, 87-100mm | ø62mm, ø87mm | with extension rod |
| 100 – 200mm | 468-975 | 100-125, 125-150, 150-175, 175-200mm | ø125mm, ø175mm | with extension rod |
Inch/Metric (with TiN-coated contact points)
| Range | Order No. | Individual range | Setting rings included | Remarks | ||
| .275 – .5″ / 6.925 – 12.7mm | 468-976 | .275-.35″, .35-.425″, .425-.5″ | .35″ DIA., .425″ DIA. | with extension rod | ||
| .5 – .8″ / 12.7 – 20.32mm | 468-977 | .5-.65″, .65-.8″ | .65″ DIA. | with extension rod | ||
| .8 – 2″ / 20.32 – 50.8mm | 468-978 | .8-1″, 1-1.2″, 1.2-1.6″, 1.6-2″ | 1″ DIA., 1.6″ DIA. | with extension rod | ||
| 2 – 4″ / 50.8 – 101.6mm | 468-979 | 2-2.5″, 2.5-3″, 3-3.5″, 3.5-4″ | 2.5″ DIA., 3.5″ DIA | with extension rod | ||
| 4 – 8″ / 101.6 – 203.2mm | 468-980 | 4-5″, 5-6″, 6-7″, 7-8″ | 5″ DIA., 7″ DIA. | with extension rod | ||
| Brand | MITUTOYO |
|---|
