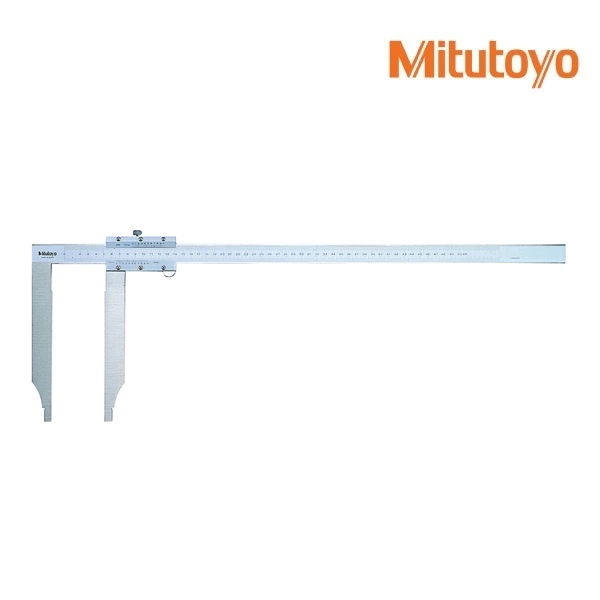

Mitutoyo Series 534 Long-Jaw Vernier Caliper

FEATURES

  • Long jaws for measuring hard-to-reach features.
  • Fine adjustment for more accurate measurement (except 534-109 and 534-110)
  • Supplied in fitted wooden case.
SKU: TMI-160 Categories: ,

Download: Mitutoyo Series 534 Data Sheet

SPECIFICATIONS

Metric     with metric/metric dual scale without fine adjustment

Range* Order No. Accuracy

Graduation

 Mass (g)
Lower Scale Upper Scale
0 (10) – 300mm 534-109 ±0.07mm 0.05mm 0.05mm 400
0 (20) – 500mm 534-110 ±0.13mm 0.05mm 0.05mm 1,400

*( ): Minimum dimension in ID measurement



Metric     with metric/metric dual scale

Range* Order No. Accuracy

Graduation

 Mass (g)
Lower Scale Upper Scale
0 (10) – 300mm 534-113 ±0.04mm 0.02mm 0.02mm 460
0 (20) – 500mm 534-114 ±0.06mm 0.02mm 0.02mm 1,500
0 (20) – 750mm 534-115 ±0.08mm 0.02mm 0.02mm 2,900
0 (20) – 1000mm 534-116 ±0.10mm 0.02mm 0.02mm 3,500

*( ): Minimum dimension in ID measurement



Metric/Inch     with metric/inch dual scale

Range* Order No. Accuracy

Graduation

 Mass (g)
Lower Scale Upper Scale
0 (10) – 300mm / 0 (.3”) – 12″ 534-101 ±0.07mm 0.05mm 1/128” 460
0 (10) – 300mm / 0 (.3”) – 12″ 534-105 ±0.04mm 0.02mm .001” 460
0 (20) – 500mm / 0 (.8”) – 20″ 534-102 ±0.13mm 0.05mm 1/128” 1,500
0 (20) – 500mm / 0 (.8”) – 20″ 534-106 ±0.06mm 0.02mm .001” 1,500
0 (20) – 700mm / 0 (.8”) – 30″ 534-103 ±0.16mm 0.05mm 1/128” 2,900
0 (20) – 700mm / 0 (.8”) – 30″ 534-107 ±0.08mm 0.02mm .001” 2,900
0 (20) – 1000mm / 0 (.8”) – 40″ 534-104 ±0.20mm 0.05mm 1/128” 3,500
0 (20) – 1000mm / 0 (.8”) – 40″ 534-108 ±0.10mm 0.02mm .001” 3,500

*( ): Minimum dimension in ID measurement



Inch     with inch/inch dual scale

Range* Order No. Accuracy Graduation Mass (g)
Lower Scale Upper Scale
0 (.3”) – 12″ 534-117 ±.002″ .001” .001” 400
0 (.8”) – 20″ 534-118 ±.003″ .001” .001” 1500
0 (.8”) – 30″ 534-119 ±.004″ .001” .001” 2900
0 (.8”) – 40″ 534-120 ±.004″ .001” .001” 3500

*( ): Minimum dimension in ID measurement

Brand

MITUTOYO
