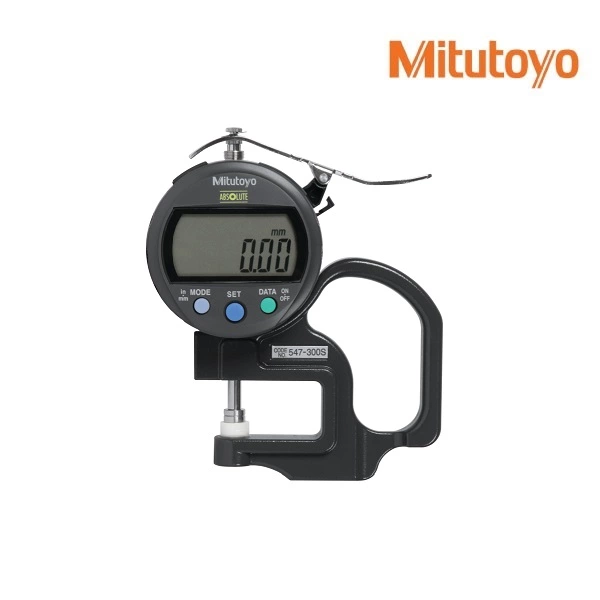

Mitutoyo Series 547, 7 Thickness Gages

Thickness Gages offer a quick and efficient means of inspection with a convenient grip handle, thumb trigger and spring-loaded spindle. The various models cover a range of applications.

FEATURES

Wide range of applications with various types of measuring faces (on the spindle and anvil).
Digital models incorporate Mitutoyo’s popular ID-C and ID-S Series Digimatic Indicators to provide error-free LCD readings, as well as data output for SPC analysis.
547-400S is ideally suited for measuring thicknesses of paper, film, wire, sheet metal and similar materials.

SKU: TMI-298 Categories: Dimension, Products

Description
Additional information

Download: Mitutoyo Series 547, 7 Data Sheet

SPECIFICATIONS

Inch/Metric Digital Type

Range	Order No.	Resolution	Accuracy	Measuring Force	Indicator	Spindle/Anvil Material
0 – .47” / 0 – 12mm	547-500S	.0005”/0.01mm	±.001”	1.5N or less	Digimatic IDS	Ceramic
0 – .47” / 0 – 12mm	547-520S	.0005”/0.01mm	±.001”	1.5N or less	Digimatic IDS	Ceramic
0 – .47” / 0 – 12mm	547-526S	.0001”/0.001mm	±.0002”	1.5N or less	Digimatic IDS	Ceramic
0 – .4” / 0 – 10mm	547-300S	.0005”/0.01mm	±.001”	1.5N or less	Digimatic IDC	Ceramic
0 – .4” / 0 – 10mm	547-320S	.0005”/0.01mm	±.001”	1.5N or less	Digimatic IDC	Ceramic
0 – .47” / 0 – 12mm	547-400S	.00005”/0.001mm	±.00015”	3.5N or less	Digimatic IDC	Carbide

Inch Dial Type

Range	Order No.	Graduation	Accuracy	Measuring Force	Remarks
0 – .05”	7326S	.0001”	±.0002”	1.4N or less	Fine dial reading, ceramic spindle/anvil
0 – .5”	7300S	.001”	±.001″	1.4N or less	Standard, ceramic spindle/anvil
0 – 1”	7304S	.001”	±.002”	2.0N or less	Standard, ceramic spindle/anvil
0 – 1”	7322S	.001”	±.002”	2.0N or less	Deep throat, ceramic spindle/anvil

Metric Dial Type

Range	Order No.	Graduation	Accuracy	Measuring Force	Remarks
0 – 1mm	7327	0.001mm	±5μm	1.4N or less	Fine dial reading, ceramic spindle/anvil
0 – 10mm	7301	0.01mm	±15μm	1.4N or less	Standard, ceramic spindle/anvil
0 – 20mm	7305	0.01mm	±20μm	2.0N or less	Standard, ceramic spindle/anvil
0 – 10mm	7321	0.01mm	±15μm	1.4N or less	Deep throat, ceramic spindle/anvil
0 – 20mm	7323	0.01mm	±22μm	2.0N or less	Deep throat, ceramic spindle/anvil

Inch/Metric Digital Type

Range	Order No.	Resolution	Accuracy	Measuring Force	Indicator
0 – .47” / 0 – 12mm	547-512S	.0005”/0.01mm	±.001”	1.5N or less	Digimatic IDS
0 – .4” / 0 – 10mm	547-312S	.0005”/0.01mm	±.001”	1.5N or less	Digimatic IDC

Inch Dial Type

Range	Order No.	Graduation	Accuracy	Measuring Force	Remarks
0 – .5″	7312S	.001″	±.001”	1.4N or less	Lens thickness

Metric Dial Type

Range	Order No.	Graduation	Accuracy	Measuring Force	Remarks
0 – 10mm	7313	0.01mm	±15μm	1.4N or less	Lens thickness

Inch/Metric Digital Type

Range	Order No.	Resolution	Accuracy	Measuring Force	Indicator
0 – .47” / 0 – 12mm	547-561S	.0005”/0.01mm	±.001”	1.5N or less	Digimatic IDS
0 – .4” / 0 – 12mm	547-361S	.0005”/0.01mm	±.001”	1.5N or less	Digimatic IDC

Inch Dial Type

Range	Order No.	Graduation	Accuracy	Measuring Force	Remarks
0 – .5”	7361S	.001″	±.001”	1.4N or less	Tube thickness

Metric Dial Type

Range	Order No.	Graduation	Accuracy	Measuring Force	Remarks
0 – 10mm	7360	0.01mm	±15μm	1.4N or less	Tube thickness

Inch/Metric Digital Type

Range	Order No.	Resolution	Accuracy	Measuring Force	Indicator
0 – .47” / 0 – 12mm	547-516S	.0005”/0.01mm	±.001”	1.5N or less	Digimatic IDS
0 – .47” / 0 – 10mm	547-316S	.0005”/0.01mm	±.001”	1.5N or less	Digimatic IDC

Inch Dial Type

Range	Order No.	Graduation	Accuracy	Measuring Force	Remarks
0 – .5”	7316S	.001″	±.001”	1.4N or less	Groove thickness

Metric Dial Type

Range	Order No.	Graduation	Accuracy	Measuring Force	Remarks
0 – 10mm	7315	0.01mm	±15μm	1.4N or less	Groove thickness

Brand	MITUTOYO
