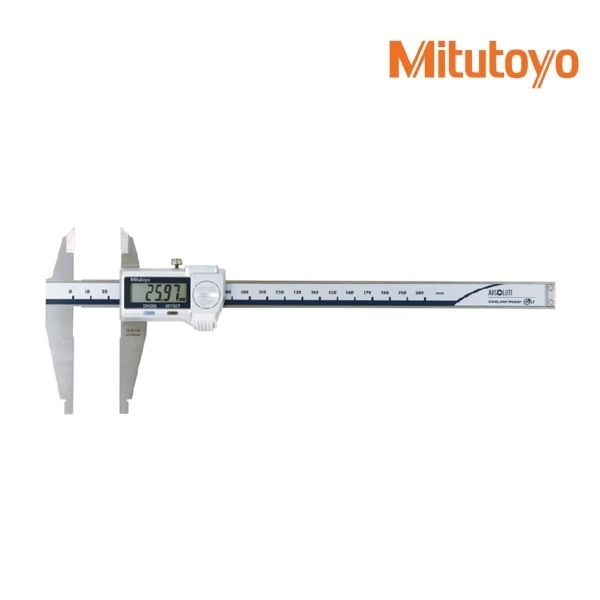

Mitutoyo Series 551 ABSOLUTE Digimatic Caliper

with Nib Style and Standard Jaws

FEATURES

The rounded faces of the jaws are ideal for accurate ID (inside diameter) measurement.
With SPC output.
Supplied in fitted plastic holster in carton. 18″ / 450mm and larger supplied wooden case.

SKU: TMI-161 Categories: Dimension, Products

Download: Mitutoyo Series 551 Data Sheet

SPECIFICATIONS

Metric Digital model

Range*	Order No.	Accuracy	Resolution	Mass (g)	Remarks
0 (10) – 200mm	551-301-20	±0.03mm	0.01mm	180	IP67
0 (10) – 300mm	551-331-10	±0.04mm	0.01mm	380	with offset/preset function for easy ID measurement, IP67
0 (20) – 500mm	551-204-10**	±0.06mm	0.01mm	1,060	—
0 (20) – 750mm	551-206-10**	±0.06mm	0.01mm	1,410	—
0 (20) – 1000mm	551-207-10**	±0.07mm	0.01mm	3,430	—

*( ): Minimum dimension in ID measurement ** Models are not IP67 rated

Inch/Metric Digital model

Range*	Order No.	Accuracy	Resolution	Mass (g)	Remarks
0 (.4”) – 8″ / 0 (10) – 200mm	551-311-20	±.001″	.0005” / 0.01mm	180	IP67
0 (.4”) – 12″ / 0 (10) – 300mm	551-341-10	±.002″	.0005” / 0.01mm	380	w/ offset/preset function for easy ID measurement, IP67
0 (.5”) – 20″ / 0 (20) – 500mm	551-224-10**	±.0025″	.0005” / 0.01mm	1,060	—
0 (.5”) – 30″ / 0 (20) – 750mm	551-226-10**	±.0025″	.0005” / 0.01mm	1,410	—
0 (1”) – 40″ / 0 (20) – 1000mm	551-227-10**	±.003″	.0005” / 0.01mm	3,430	—

*( ): Minimum dimension in ID measurement ** Models are not IP67 rated

Brand	MITUTOYO
