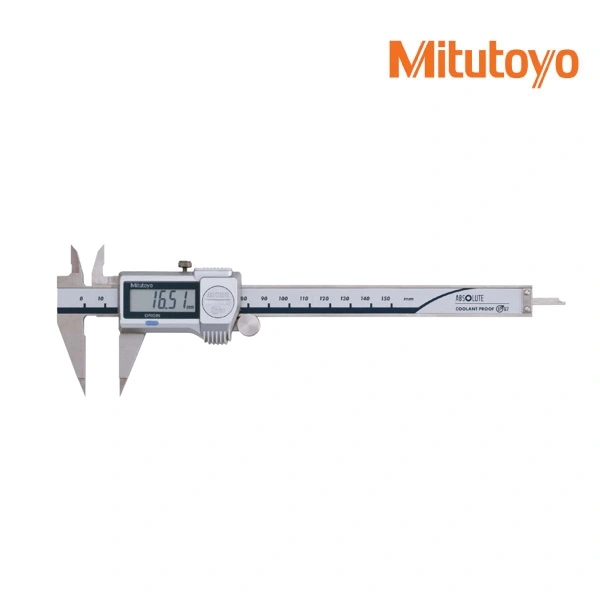

MITUTOYO SERIES 573 – ABSOLUTE DIGIMATIC AND VERNIER TYPES POINT CALIPER

Categories: Dimension, Products

Description
Additional information

Download: Mitutoyo series 573 – Point Caliper

• Narrow-tip jaws fit into very small grooves and tracks.
• Allows step measurement.
• Digimatic models are IP67 Absolute type. Slider action is smooth, firm and comfortable.

SPECIFICATIONS

Order No	Range (mm)	Resolution (mm)	*Maximum permissible error (mm)2**
Order No	Range (mm)	Resolution (mm)	EMPE	SMPE
573-621-20	0 – 150	0.01	±0.02	±0.04
573-625-20	0 – 150		±0.02	±0.04
573-622-20*1	0 – 150		±0.02	±0.04
573-626-20*1	0 – 150		±0.02	±0.04

INCH/METRIC

Order No	Range (mm)	Resolution (mm)	*Maximum permissible error (mm)2**
			EMPE	SMPE
573-721-20	0 – 6 in/0 – 150 mm	0.0005 in/0.01 mm	±0.001 in/±0.02 mm	±0.002 in/±0.04 mm
573-725-20

• Dust/Water protection level: IP67 (IEC 60529)*3
• Battery: SR44 (1 pc.), 938882, for initial operational checks (standard accessory)
• Battery life: Approx. 5 years under normal use
• Scale type: ABSOLUTE electromagnetic induction linear encoder
• Max. response speed: Unlimited
• With depth bar
*1 Without thumb roller
*2 Partial Surface Contact Error, EMPE and Shift Error, SMPE are terms (notations) used in ISO 13385-1:2019.
*3 Rustproofing shall be applied after use if caliper was in contact with coolant.

Brand	MITUTOYO
