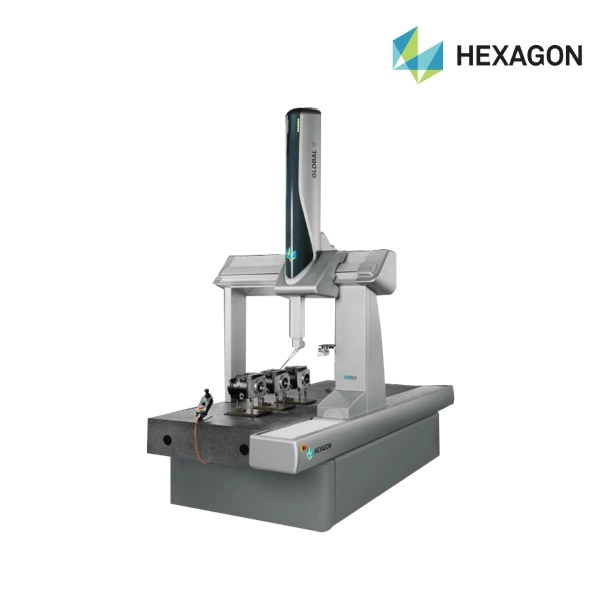

HEXAGON GLOBAL S
The coordinate measuring machine that pushes productivity further
The GLOBAL S coordinate measuring machine (CMM) series from Hexagon Manufacturing Intelligence combines smart technologies delivering superior measurement performance and enhanced productivity for the unique needs of any production environment. Designed by Pininfarina and powered by Hexagon’s Enhanced Productivity Series (EPS) concept, GLOBAL S brings together enhanced technologies to form an optimal measurement solution with three performance levels: Green, Blue and Chrome, to suit the requirements of any application.
EPS machines offer customers the option to select their main productivity driver and configure the CMM for throughput, precision, flexibility or shop floor capability. The CMM range also supports fully-customised setups to ensure that GLOBAL S is universally applicable and drives continuous productivity improvements.
Download: HEXAGON GLOBAL S Data Sheet
GLOBAL S: Technical characteristics
| Mechanical Frame | X: Micromachined anodized light alloy extrusion
Y: Integral dovetail guideways, machined into the table Z: Micromachined anodized light alloy extrusion |
|||||
| Surface Plate | Material: Granite
Flatness: according to DIN 876/III
Part Locking: threaded inserts M8 x 1.25 Diagonally staggered hole pattern: GLOBAL S 05.YY.05: X = 350 mm; Y= 150 mm GLOBAL S 07.YY.07: X = 300 mm; Y= 300 mm GLOBAL S from 09.YY.08: X = 350 mm; Y= 350 mm |
|||||
| Sliding System | Air bearings on all axes | |||||
| Measuring System | METALLUR® linear scales. System Resolution: 0.005 μm | |||||
| Temperature Compensation | Extended temperature 16 – 26 °C: Multi-sensor technology
Shop floor temperature 15 – 30°C: Structural multi-sensor technology |
|||||
| Ram Counterbalance | Pneumatic, adjustable | |||||
| Controller | DC800 or DC800 I/O Ready, IP54 |
DC800 or DC800 I/O Ready, IP54 |
DC 241, IP54 |
|||
| Supply Requirements | Power
Air |
100/120/220/240 V ± 10% – 50/60 Hz – 1.6 KVA
0.5 MPa minimum – Class 4 according to ISO 8573/1 |
||||
| Consumption | Power | 0.5 KVAh | 0.5 KVAh | 0.35 KVAh | ||
| Air | 70 Nl/min (for 05.YY.05); 90 Nl/min (for all other models) | |||||
| Operating Specifications | Ambient temperature: 10 °C – 40 °C
Relative humidity: 20% – 90 % non-condensing |
|||||
| ยี่ห้อ | HEXAGON |
|---|
