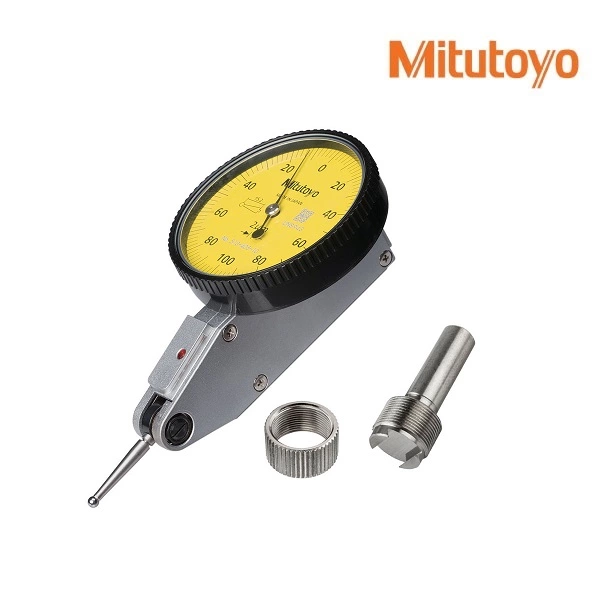

Mitutoyo Series 513 Dial Test Indicators

Horizontal Type

FEATURES

  • Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
  • No-clutch structure for automatic reversal of measuring direction.
  • One-piece bezel and crystal design with O-ring provide resistance to water and dust.
  • The glare-free flat crystal face has a scratch-resistant coating.
  • High sensitivity and quick response because of jeweled bearings.
  • Standard carbide contact point provide.
รหัสสินค้า: TMI-288 หมวดหมู่: ,

Download: Mitutoyo Series 513 Data Sheet

SPECIFICATIONS

Inch

Graduation Order No. Range Accuracy Dial reading Measuring force L (mm)
  Basic set Full set
.00005” 513-407-10E 513-407-10T .008” ±.0001” 0-4-0 0.3N or less 19
.0005” 513-402-10E 513-402-10T .03” ±.0005” 0-15-0 0.3N or less 19.9
.0005” 513-472-10E* .03″ ±.0005″ 0-15-0 0.3N or less 19.9
.0005” 513-412-10E 513-412-10T .03” ±.0005” 0-15-0 0.2N or less 33.9
.0005” 513-479-10E* .03″ ±.0005″ 0-15-0 0.2N or less 33.9
.0005” 513-462-10E .03” ±.0005” 0-15-0 0.3N or less 19.9
.0001” 513-403-10E 513-403-10T .008” ±.0001” 0-4-0 0.3N or less 19
.0001” 513-473-10E* .008″ ±.0001″ 0-4-0 0.3N or less 19
.0001” 513-463-10E .008” ±.0001” 0-4-0 0.3N or less 15

*Provided with a ø2mm ruby contact point as a substitute for ø2mm carbide contact point.



Metric

Graduation Order No. Range Accuracy Dial reading Measuring force L (mm)
  Basic set Full set
0.01mm 513-424-10E 513-424-10T 0.5mm 5μm 0-25-0 0.3N or less 22.3
0.01mm 513-414-10E 513-414-10T 0.5mm 10μm 0-25-0 0.2N or less 36.8
0.01mm 513-466-10E – 0.5mm 5μm 0-25-0 0.3N or less 22.3
0.01mm 513-478-10E* – 0.5mm 5μm 0-25-0 0.3N or less 22.3
0.01mm 513-404-10E 513-404-10T 0.8mm 8μm 0-40-0 0.3N or less 20.9
0.01mm 513-474-10E* – 0.8mm 8μm 0-40-0 0.3N or less 20.9
0.01mm 513-464-10E – 0.8mm 8μm 0-40-0 0.3N or less 20.9
0.01mm 513-415-10E 513-415-10T 1mm 10μm 0-50-0 0.2N or less 44.5
0.01mm 513-477-10E* – 1mm 10μm 0-50-0 0.2N or less 44.5
0.01mm 513-426-10E – 1.5mm 16μm 0-25-0 0.4N or less 22.3
0.002mm 513-405-10E 513-405-10T 0.2mm 4μm 0-100-0 0.3N or less 14.7
0.002mm 513-465-10E – 0.2mm 4μm 0-100-0 0.3N or less 14.7
0.002mm 513-475-10H* – 0.2mm 4μm 0-100-0 0.3N or Less 18.7
0.002mm 513-425-10E – 0.6mm 7μm 0-100-0 0.4N or less 14.7
0.001mm 513-401-10E – 0.14mm 4μm 0-70-0 0.3N or less 12.8
0.001mm 513-471-10E* – 0.14mm 4μm 0-70-0 0.3N or less 12.8

*Provided with a ø2mm ruby contact point as a substitute for ø2mm carbide contact point.



Metric/inch

Graduation Order No.
Basic set		 Order No.
Full set		 Range Accuracy Dial reading Measuring force L (mm)
0.002mm,
.0001”		 513-409-10E 513-409-10T 0.2mm,
.0075”		 3µm 0-10-0,
0-38-0		 0.3N or less 14.7



Inch/Metric

Graduation Order No.
Basic set		 Order No.
Full set		 Range Accuracy Dial reading Measuring force L (mm)
.0005”,
0.01mm		 513-406-10E 513-406-10T .03”,
0.7mm		 ±.0005” 0-15-0,
0-35-0		 0.3N or less 19.9
