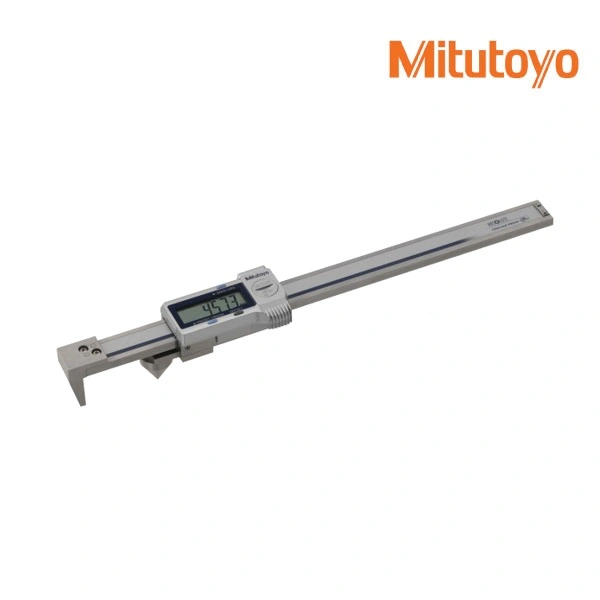

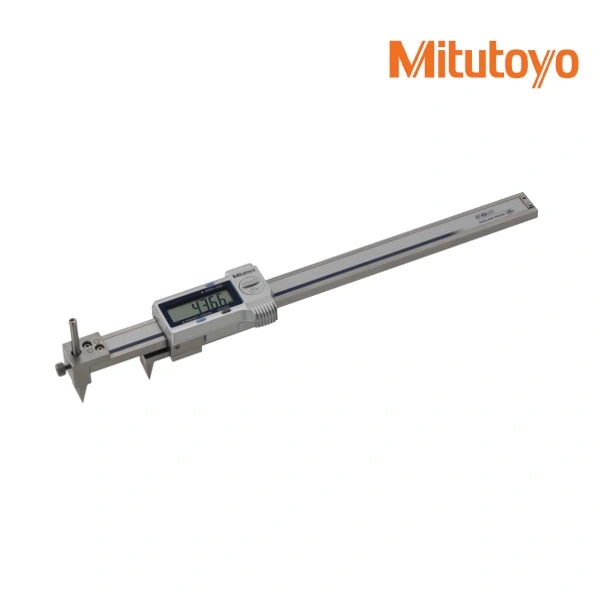

MITUTOYO SERIES 573 – ABSOLUTE CENTER-TO-CENTER & EDGE-TO-CENTER TYPES

หมวดหมู่: ,

Download: Mitutoyo SERIES 573 – ABSOLUTE Center-to-Center & Edge-to-Center Types

• Specially designed to measure hole Center to-Center and Edge-to-Center distances.
Provided with jaws on the back of the slider, measurements can be read easily from above.
• Direct reading of pitch measurements is available due to the offset value setting function.

SPECIFICATIONS

Order No Range (mm) Resolution (mm) Maximum permissible error (mm)*2
EMPE SMPE
573-718-20*1 10.1 – 200 0.01 – ±0.10
573-719-20*1 10.1 – 300  ±0.15

• Battery: SR44 (1 pc.), 938882, for initial operational checks (standard accessory)
• Scale type: ABSOLUTE electromagnetic induction linear encoder
• Max. response speed: Unlimited
*1 Applicable hole diameter: ø1.5 – ø19.5 mm
*2 Partial Surface Contact Error, EMPE and Shift Error, SMPE are terms (notations) used in ISO 13385-1:2019.

Order No Range (mm) Resolution (mm) Maximum permissible error (mm)*2
EMPE SMPE
573-716-20*1 10.1 – 200 0.01 – ±0.10
573-717-20*1 10.1 – 300  ±0.15

• Battery: SR44 (1 pc.), 938882, for initial operational checks (standard accessory)
• Scale type: ABSOLUTE electromagnetic induction linear encoder
• Max. response speed: Unlimited
*1 Applicable hole diameter: ø1.5 – ø19.5 mm
*2 Partial Surface Contact Error, EMPE and Shift Error, SMPE are terms (notations) used in ISO 13385-1:2019.
