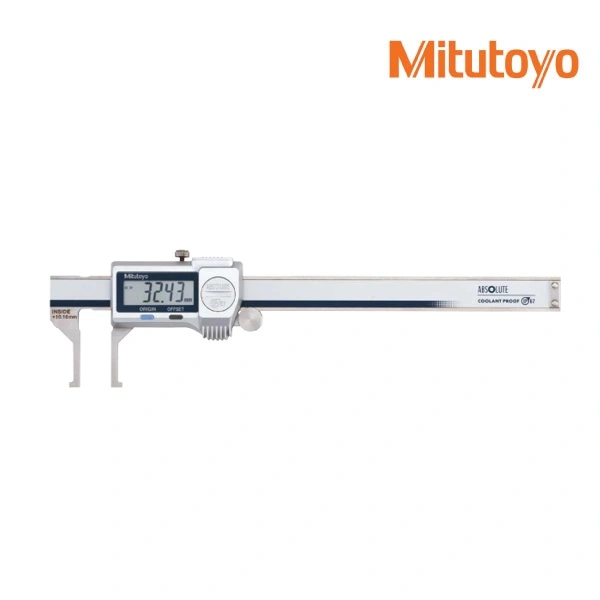

MITUTOYO SERIES 573 INSIDE GROOVE TYPE ABSOLUTE INSIDE CALIPER

หมวดหมู่: ,

Download :MITUTOYO SERIES 573 INSIDE GROOVE TYPE ABSOLUTE INSIDE CALIPER

• Dedicated caliper for inside measurement.

• Digimatic models are IP67 Absolute type.Slider action is smooth, firm and comfortable.

SPECIFICATIONS

Order No. Range (mm) Resolution (mm) Maximum permissible error (mm)*3 Remarks
EMPE SMPE
573-642-20 10 – 200 0.01 –  ±0.05 Knife-edge type, Measurable min.
573-643-20*1 10 – 200  ±0.05 Knife-edge type, Measurable min.
573-645-20*2 10.1 – 160  ±0.05 inside groove type, Measurable min.
573-647-20*1 10.1 – 160  ±0.05 Inside groove type, Measurable min.
573-646-20*2 20.1 – 170 ±0.03 Point jaw type, Measurable min.
573-648-20*1 20.1 – 170 ±0.03 Point jaw type, Measurable min.



Order No. Range (mm) Resolution (mm) Maximum permissible error (mm)*3 Remarks
EMPE SMPE
573-742-20 0.4 – 8 in/
10 – 200 mm		 0.0005 in/
0.01 mm		 – ±0.002 in/
±0.05 mm		 Knife-edge type, Measurable min.
573-745-20*2 0.404 – 6.4 in/
10.26 – 160.16 mm		 ±0.002 in/
±0.05 mm		 Inside groove type, Measurable min.
573-746-20*2 0.804 – 6.8 in/
20.42 – 170.32 mm		 ±0.0015 in/
±0.03 mm		 Point jaw type, Measurable min.


• Dust/Water protection level: IP67 (IEC 60529)*4
• Battery: SR44 (1 pc.), 938882, for initial operational checks (standard accessory)
• Battery life: Approx. 5 years under normal use
• Scale type: ABSOLUTE electromagnetic induction linear encoder
• Max. response speed: Unlimited
*1 Without thumb roller
*2 Includes the offsetting function, which indicates the actual measurement value.
*3 Partial Surface Contact Error, EMPE and Shift Error, SMPE are terms (notations) used in ISO 13385-1:2019.
*4 Rustproofing shall be applied after use if caliper was in contact with coolant.
