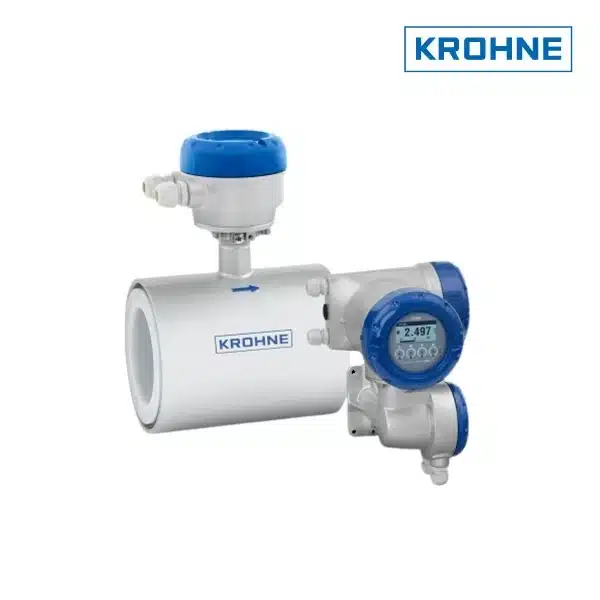

KROHNE – OPTIFLUX 1400 FLOW METER

• Multi Phase Operation (MPO): Continuous measurement and stable, repeatable readings – even during major process disturbances such as gas entrainment and solids
• Parameterisation, monitoring and verification via Bluetooth^®
• Wafer design: DN10…150 / ⅜…6″; max. PN40 / ASME Cl 300
• Advanced OPTICHECK technology built-in diagnostics and NAMUR NE 107 status indication via colour-coded backlit display

Features & Options

• Features a high-end modular signal converter for a wide range of configuration settings and signal output options
• MPO
  –  With optimised signal processing
  –  Maintains measurement operation even during major process disturbances
  –  Delivers stable, repeatable readings for flow and conductivity – even in the presence of significant gas entrainment, solids, electromagnetic disturbances, etc.
  –  Available without additional configuration
• Features
  –  Enhanced application and device diagnostics: Detection of deposits or coating on the electrodes, temperature and conductivity changes in the medium, gas bubbles or solids, empty pipe, etc.
  –  User-friendly device parameterisation, monitoring and on-site verification
  › Wirelessly and securely via Bluetooth^® in conjunction with a mobile phone or tablet and the app
  › Via HART^® using the
  › Verification report about device status with one click
• Real time clock for logging and diagnostic event analysis
• High-resolution, backlit display with colour-coding for intuitive status and alarm recognition
• Optimised menu navigation: reduced complexity thanks to fewer menu items

EcoMode: Energy-saving mode designed to reduce power consumption while maintaining consistently high measurement accuracy

• Available with  grounding method: no grounding rings needed
• Bi-directional flow measurement over a wide dynamic range (turn down ratio: 1000:1)
• Lightweight and compact wafer-style (“sandwich”) design for space-saving installation
• Pipe cross-section without restrictions for slurries with non-abrasive solid particles
• Reinforced PFA liner: Smooth surface, excellent chemical resistance, maintenance-free
• Signal converter is backwards compatible with previous sensor versions, e.g.
• Approved for use in hazardous areas (ATEX, IECEx db eb)
