532-101-Mitutoyo-1

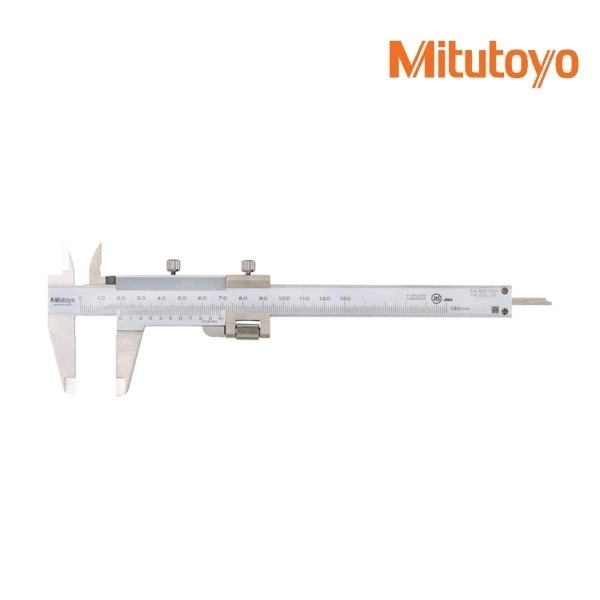

Mitutoyo Series 532 Vernier Caliper

with Fine Adjustment

FEATURES

Provided with a fine-adjustment carriage to feed the slider finely.
Can measure OD, ID, depth and steps.
Supplied with vinyl holster in fitted carton.

SKU: TMI-157 Categories: Dimension, Products

Description
Additional information

Download: Mitutoyo Series 532 Data Sheet

SPECIFICATIONS

Metric

Range	Order No.	Accuracy	Graduation
0 – 130mm	532-101	±0.03mm	0.02mm
0 – 180mm	532-102	±0.03mm	0.02mm
0 – 280mm	532-103	±0.04mm	0.02mm

Metric/Inch with metric/inch dual scale

Range	Order No.	Accuracy	Graduation
Range	Order No.	Accuracy	Lower Scale	Upper Scale
0 – 130mm / 0 – 5”	532-119	±0.03mm	0.02mm	.001″
0 – 180mm / 0 – 7”	532-120	±0.03mm	0.02mm	.001″
0 – 280mm / 0 – 11”	532-121	±0.04mm	0.02mm	.001″

Brand	MITUTOYO
