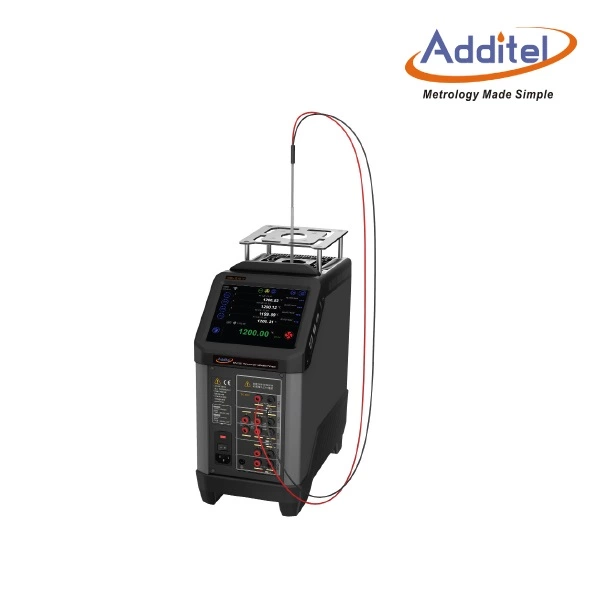

Additel ADT875 and ADT878 Thermocouple Calibration Furnaces

  • Temperature control from 100°C to 1210°C
  • Two models to choose from : Reference (ADT878) and Standard (ADT875)
  • Display Accuracy of ±1.5°C (ADT878)
  • Stability of ±0.1°C
  • 4 on-board measurement channels (PC option)
  • Process calibrator option provides a multi-channel readout for TCs, switches and transmitters, including task documentation and HART communication
  • Portable, rugged and quick to temperature
  • Self-calibration feature (PC option)
  • Multi-zone temperature control
  • Internal and external sensor control (PC option)
  • Metallic interchangeable inserts
  • Wi-Fi and Bluetooth capable
  • Color touch screen display
  • ISO 17025-accredited calibration w/data included
  • Patent pending technology
Quantity exceeds maximum limit, please request for quotation.
Quantity exceeds stock, please request for quotation.
Out of stock, please request for quotation.
Added calibration service, please request for quotation.
SKU: N/A Categories: ,

Download: Additel ADT875 and ADT878 Data Sheet

Specifications

General Specifications

Specification 875-1210 878-1210 [1]
Temperature Range 100°C to 1210°C
Display Accuracy ±1.2°C @ 100°C

±1.2°C @ 300°C

±1.2°C @ 600°C

±1.6°C @ 900°C

±2.0°C @ 1210°C

 ±1.0°C @ 100°C

±1.0°C @ 300°C

±1.0°C @ 600°C

±1.2°C @ 900°C

±1.5°C @ 1210°C
Stability ±0.1°C
Axial Uniformity
(20mm zone)		 ±0.6°C @ 100°C

±1.2°C @ 300°C

±1.5°C @ 600°C

±1.5°C @ 900°C

±1.5°C @ 1210°C

 ±0.4°C @ 100°C

±0.8°C @ 300°C

±1°C @ 600°C

±1°C @ 900°C

±1°C @ 1210°C
Radial Uniformity ±0.2°C @ 100°C

±0.3°C @ 300°C

±0.4°C @ 600°C

±0.8°C @ 900°C

±1°C @ 1210°C

 ±0.2°C @ 100°C

±0.3°C @ 300°C

±0.4°C @ 600°C

±0.6C @ 900°C

±0.8°C @ 1210°C
Loading Effect ±0.5°C
Environmental Conditions 8°C to 38°C guaranteed accuracy

0°C to 50°C, 0% to 90% RH non-condensing,
3000 M altitude for normal operation
Storage Conditions -20°C to 60°C
Immersion Depth XR style inserts = 138 mm (5.43″)
XS style inserts = 116 mm (4.57″)(see insert ordering info for more details)
Insert Size – OD 24.8 mm (0.98 inches)
Heating Time 50 min: 23°C to 1210°C
Cooling Time 50 mins:1210°C to 300°C
50 mins: 300°C to 50°C		 55 mins:1210°C to 300°C 55 mins: 300°C to 50°C
Typical Time to Stability 15 min
Resolution 0.01°C
Units °C, °F, and K
Display 6.5 in (165 mm) color touch screen
Size (H x W x D) 345 x 170 x 330 mm (13.6 x 6.7 x 13.0 in)
Weight 10.6 kg (23.4 lbs)
Power Requirements 90-254 VAC, 45-65 Hz, 580 W
Mechanical Testing Vibration:  2  g  (10-500  Hz),  30  min  for  2  sides
Impact: 4 g three timesDrop test: 500 mm (19.6 in)
Communication USB A, USB B, RJ45, WiFi, Bluetooth
Localization English, Chinese, Japanese, Russian, German
Warranty 1 year

[1] 878-1210 specifications require the use of an “XR” style insert.
Otherwise default to the 875-1210 specifications.

Brand

Additel
