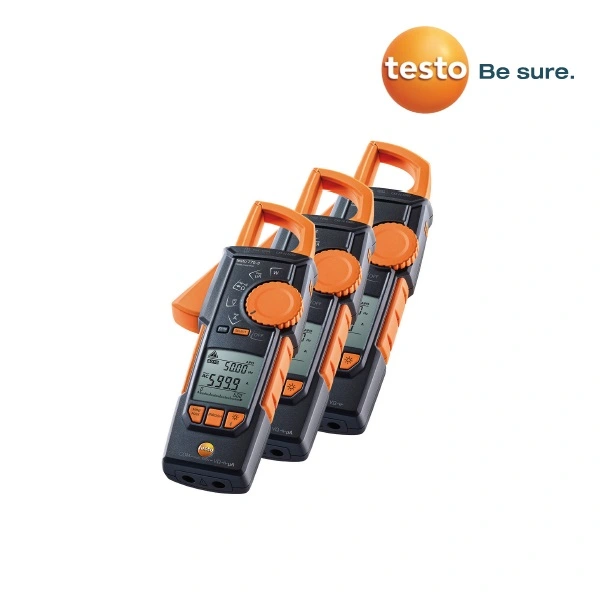

testo 770-1, 770-2, 770-3 Clamp meter

Name: testo 770-1, 770-2, 770-3 Clamp meter
SKU: 9161
Availability: BackOrder

แคลมป์มิเตอร์

Model

Clear

Add calibration service of this product.

Quantity exceeds maximum limit, please request for quotation.

Quantity exceeds stock, please request for quotation.

Out of stock, please request for quotation.

Added calibration service, please request for quotation.

SKU: N/A Categories: Electrical, Products

Download: testo 770-1, 770-2, 770-3 Clamp meter Data Sheet

testo 770-1, TRMS clamp meter, including batteries and 1 set of measuring cables

testo 770-2, TRMS clamp meter, including batteries, 1 set of measuring cables and 1 x adapter for type K thermocouples

testo 770-3, TRMS clamp meter, including batteries and 1 set of measuring cables

Technical data

Technical data	testo 770-1	testo 770-2	testo 770-3
True RMS	✓
Basic accuracy	0.8 %		0.1 %
Voltage measuring range	1 mV to 600 V AC/DC
Current measuring range	0.1 to 400 A AC/DC		0.1 to 600 A AC/DC
Power measurement	–		✓
µA measuring range	–	0.1 to 400 µA AC/DC
Resistance measuring range	0.1 Ω to 40 MΩ		0.1 Ω to 60 MΩ
Frequency measuring range	0.001 Hz to 10 kHz
Capacitance measuring range	0.001 µF to 100 µF		0.001 µF to 60,000 µF
Temperature measuring range	–	-20 to +500 °C
Bluetooth and testo Smart App	–		✓
Continuity testing	✓
Diode test	✓
Display (counts)	4,000		6,000
Measurement category	CAT IV 600 V CAT III 1,000 V
Compatibility	requires iOS 11.0 or newer / Android 6.0 or newer
	requires mobile terminal device with Bluetooth® 4.0
Operating temperature	-10 to +50 °C
Storage temperature	-15 to +60 °C
Dimensions	243 x 96 x 43 mm (L x W x H)
Weight	378 g
Authorizations	CSA, CE
Standards	EN 61326-1, EN 61140

Brand	TESTO
