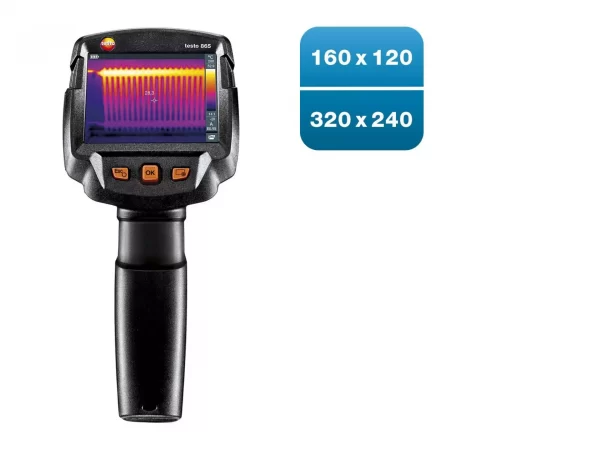

HQ-i-ia-lg-TIweb-2020-Start-865-2000x1500_master

testo-865-thermal-imager-delivery-scope-free_master

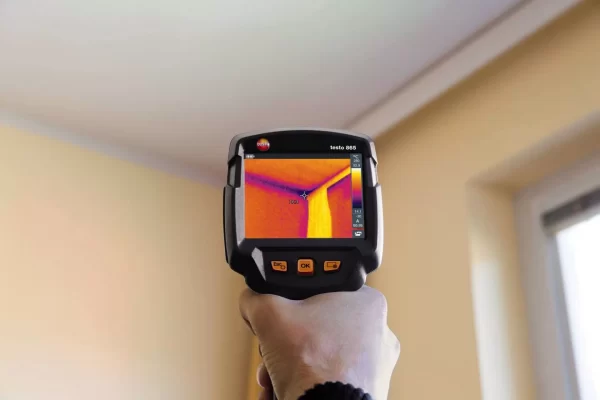

testo-865_application-building-moisture_master

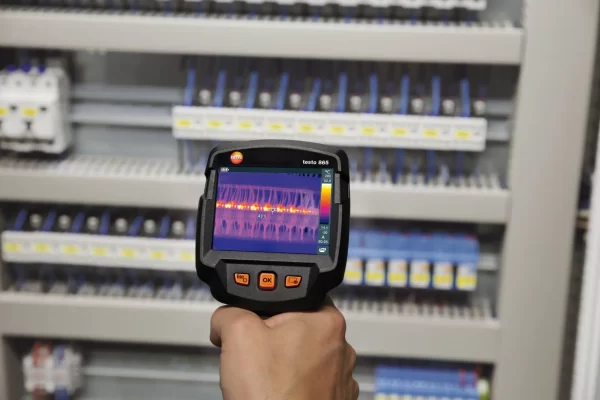

testo-865-application-electrical-cabinet_master

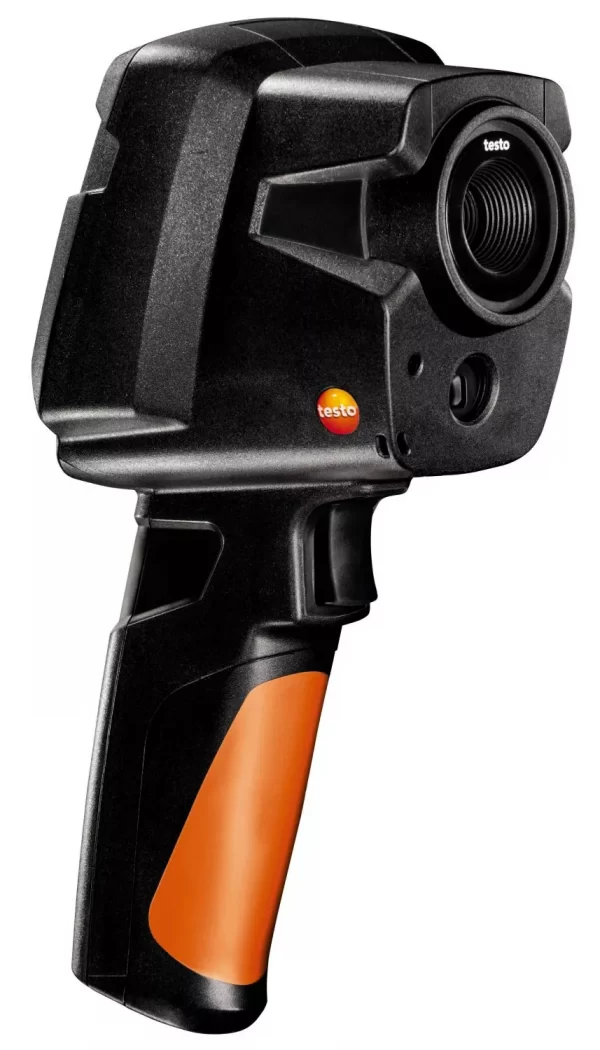

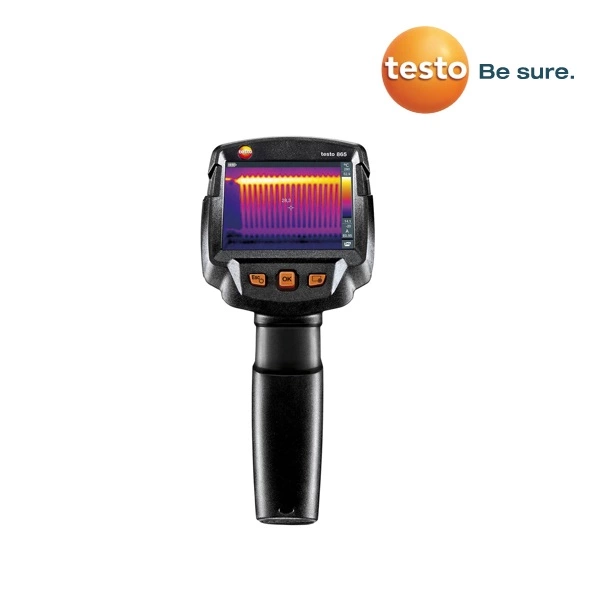

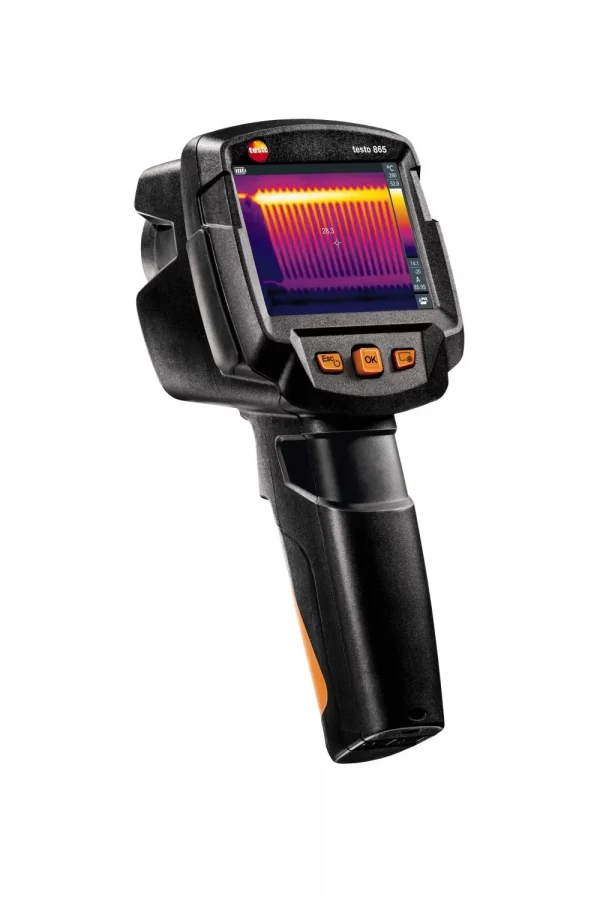

testo 865 Thermal imager

Switch on, aim, know more.

กล้องถ่ายภาพความร้อน

ช่วงการวัดอุณหภูมิ -20 ถึง 280 °C
ค่าความถูกต้อง ± 2 °C หรือ ± 2% of m.v.
จำนวนเซ็นเซอร์ 320 x 240 พิกเซล (Super Resolution)
มุมมองภาพความร้อน 31° x 23°
การปรับโฟกัสของภาพเป็นแบบ fixed
หน้าจอแสดงผล TFT 3.5 นิ้ว

SKU: 865 Categories: Products, Temperature & Humidity

Description
Additional information

Download: testo 865 Thermal imager Data Sheet

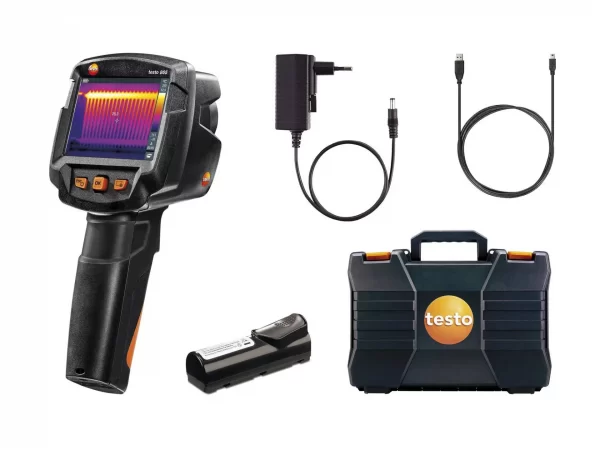

Thermal imager testo 865 with integrated testo SuperResolution, USB cable, mains unit, Lithium ion rechargeable battery, pro software (free download), quick-start guide, short instructions, calibration certificate and case

Infrared resolution 160 x 120 pixels
testo SuperResolution to 320 × 240 pixels
Automatic recognition of hot-cold spots

Technical data

Infrared image output
Infrared resolution	160 x 120 pixels
Thermal sensitivity (NETD)	120 mK
Field of view/min. focusing distance	31° x 23° / < 0.5 m
Geometric resolution (IFOV)	3.4 mrad
testo SuperResolution (Pixel/IFOV)	320 x 240 pixels 2.1 mrad
Image refresh rate	9 Hz
Focus	Fixed focus
Spectral range	7.5 to14 µm
Image presentation
Image display	8.9 cm (3.5″) TFT, QVGA (320 x 240 pixels)
Display options	IR image
Colour palettes	iron, rainbow HC, cold-hot, grey
Data interfaces
USB 2.0 Micro B	✓
Measurement
Measuring range	-20 to +280 °C
Accuracy	±2 °C, ±2 % of measurement value (larger value applies)
Emissivity / reflected temperature compensation	0.01 to 1 / manual
Measurement functions
Analysis functions	Mean point measurement, hot/cold-spot recognition, Delta T,
testo ScaleAssist	✓
IFOV warner	✓

Imager equipment
Lens	31° x 23°
Video streaming	via USB
Storage as JPG	✓
Fullscreen mode	✓
Image storage
File format	.bmt and .jpg; export options in .bmp, .jpg, .png, .csv, .xls
Memory	Internal memory (2.8 GB)
Power supply
Battery type	Li-ion battery can be changed on-site
Operating time	4 hours
Charging options	In instrument/in charging station (optional)
Mains operation	✓
Ambient conditions
Operating temperature range	-15 to +50 °C
Storage temperature range	-30 to +60 °C
Air humidity	20 to 80 %RH, not condensing
Housing protection class (IEC 60529)	IP54
Vibration (IEC 60068-2-6)	2G
Physical features
Weight	510 g
Dimensions (LxWxH)	219 x 96 x 95 mm
Housing	PC – ABS
PC software
System requirements	Windows 10, Windows 8, Windows 7
Standards, tests
EU directive	2014/30/EU

Brand	TESTO
