Additel 928-1

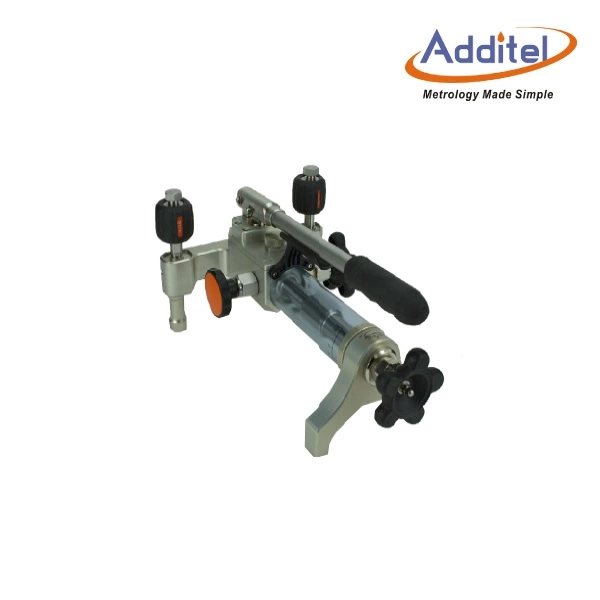

Additel 928 Hydraulic Pressure Test Pump

FEATURES

Hand pump to fill large volume systems
Portable: 8.6 lbs (3.9 kg)
Durable and minimal maintenance
Isolation valve provides stable pressures while reducing maintenance on the hand pump check valve
Easy to use
15,000 psi (1,000 bar) can be generated easily with the dual-piston system
Hand-tight quick connectors
Allows easy connection and disconnection to the test pump without the need for PTFE tape or wrenches

SKU: 928 Categories: Pressure & Vacuum, Products

Description
Additional information

Download: Additel 928 Data Sheet

Specifications

Media	Oil or deionized water. (Oil is default media liquid. Pump with water as media to be ordered specifically)
Generated Pressure Range	0 to 15,000 psi (1,000 bar) gauge pressure.
Material	Ram/adapters: 304 SS
	Body: 304 SS / aluminum
	Seals: Buna-N / PTFE / Copper Alloy
	Reservoir: UPVC
Connection	Hand-tight connectors for both test gauge and reference gauge.
	Test Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female
	Reference Gauge Connection: 1/4NPT female, 1/4BSP female, or M20X1.5 female
Dimensions	Height: 6.38″ (162 mm)
Dimensions	Base: 13.58″ (345 mm) x 8.46″ (215 mm).
Weight	8.6 lb (3.9 kg).
Warranty	1 year
Piston Volume	Fine Adjust: 0.9 ml (0.05 cubic inches)
Volume per Stroke	3.72 ml
Reservoir Volume	150 ml (9.15 cubic inches)

Brand	Additel
