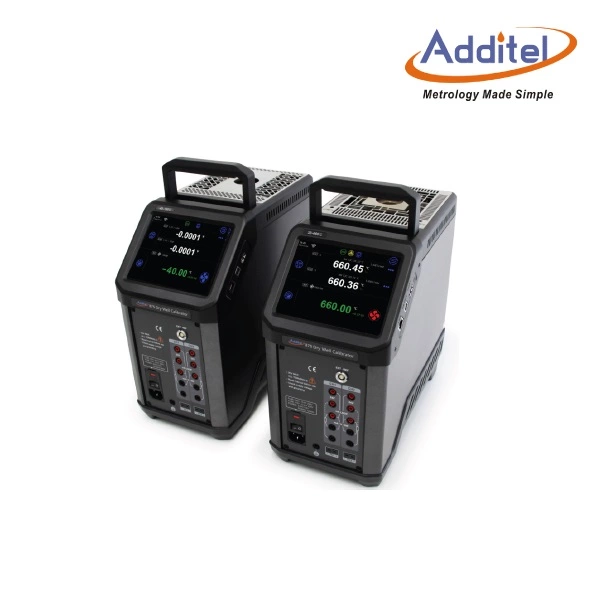

Additel 875 Series Dry Well Calibrators

  • Three models range from -40°C to 155°C, 33°C to 350°C and 33°C to 660°C
  • Portable,rugged, and quick to temperature
  • Metrology-level performance in stability, uniformity,accuracy and loading effect
  • Dual-zone control
  • Full HART field communicator
  • Process calibrator option provides a multi-channel readout for a reference thermometer,RTDs and TCs,task documentation, and HART Communication
  • Color touch screen display
  • Choose your own range option
  • Set point control by reference
  • Self-calibration feature
  • ISO 17025-accredited calibration w/data included
Quantity exceeds maximum limit, please request for quotation.
Quantity exceeds stock, please request for quotation.
Out of stock, please request for quotation.
Added calibration service, please request for quotation.
SKU: N/A Categories: ,

Download: Additel 875 Data Sheet

Specifications

Base Unit Dry Well Specifications

Specification 875-155 875-350 875-660
Temperature Range
at 23℃		 -40°C to 155°C 33°C to 350°C 33°C to 660°C
Display Accuracy ±0.18°C at Full Range ±0.2°C at Full Range ±0.3°C at 33°C
±0.3°C at 420°C
±0.5°C at 660°C
Stability (30 min) ±0.01°C at Full Range ±0.02°C at Full Range ±0.02°C at 33°C
±0.03°C at 50°C
±0.04°C at 420°C
±0.04°C at 660°C
Axial Uniformity
at 60 mm (2.4 in)		 ±0.07°C at Full Range ±0.04°C at 33°C ±0.05°C at 33°C
±0.1°C at 200°C ±0.3°C at 420°C
±0.2°C at 350°C ±0.5°C at 660°C
Radial Uniformity ±0.01°C at Full Range ±0.01°C at 33°C ±0.02°C at 33°C
±0.015°C at 200°C ±0.05°C at 420°C
±0.02°C at 350°C ±0.1°C at 660°C
Loading Effect ±0.1°C (Display Sensor) ±0.15°C (Display Sensor) ±0.15°C (Display Sensor)
±0.02°C (External Sensor) ±0.015°C (External Sensor) ±0.035°C (External Sensor)
Hysteresis
(Display Sensor)		 0.025°C 0.03°C 0.1°C
Environmental Conditions 8°C to 38°C guaranteed accuracy
0°C to 50°C, 0% to 90% RH non-condensing, 3000 M altitude for normal operation
Storage Conditions -20°C to 60°C
IP Rating IP20
Immersion Depth 145 mm (5.70 in) 150 mm(5.90 in)
Insert OD 25.8 mm (1.02 in) 24.8 mm (0.98 in)
Heating Time 13 min: -40°C to 155°C 10 min: 33°C to 350°C 15 min: 33°C to 660°C
5 min: -40°C to 23°C
8 min: 23°C to 155°C
Cooling Time 28 min: 155°C to -40°C 15 min: 350°C to 100°C 23 min: 660°C to 100°C
8 min: 155°C to 23°C 10 min: 100°C to 50°C 12 min: 100°C to 50°C
20 min: 23°C to -40°C 10 min: 50°C to 33°C 12 min: 50°C to 33°C
Typical Time to Stability 10 min
Resolution 0.01°C
Units °C, °F, and K
Display 6.5 in (165 mm) color touch screen
Size (H x W x D) 320 x 170 x 330 mm (12.6 x 6.7 x 13.0 in)
Weight 9.9 kg (21.8 lbs) 8.6 kg (18.9 lbs)
Power Requirements 90-254 VAC, 45-65 Hz, 580 W 90-254 VAC, 45-65 Hz, 1200 W
Mechanical Testing Vibration: 2 g (10-500 Hz), 30 min for 2 sides
Impact: 4 g three times
Drop test: 500 mm (19.6 in)
Communication USB A, USB B, RJ45, WiFi, Bluetooth
Localization English, Chinese, Japanese, Russian, German, French, Italian, and Spanish
Warranty 1 year
